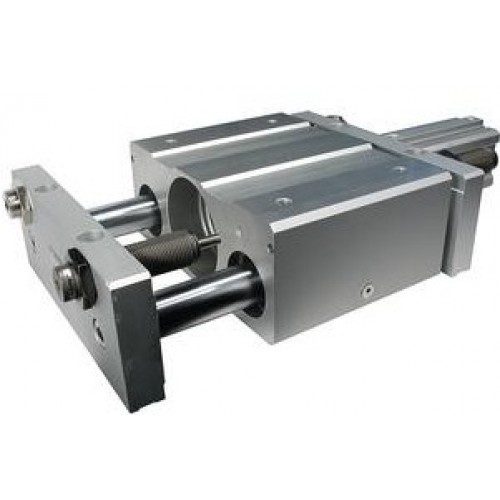

SMC Guided Air Cylinders heavy duty CXTL, Platform Cylinder, Ball Bushing Bearing

The CXT is designed for short stroke (up to 300mm) and high load applications. The cylinder utilizes a slide body, which incorporates large guide rods that allow greater load capability when compared to competitive slides. The CXT is equipped with optional shock absorbers or stroke adjustment. A choice of ball bushing bearing or carbon steel alloy slide bearing is available for applications that require smooth actuation or impact loading, respectively. The power source is supplied by a CQS cylinder, which is attached via a flexible coupling.

• Platform cylinder, ball bushing bearing
• Bore sizes: 12mm to 40mm
• Strokes up to 300mm available
• Auto switches available
