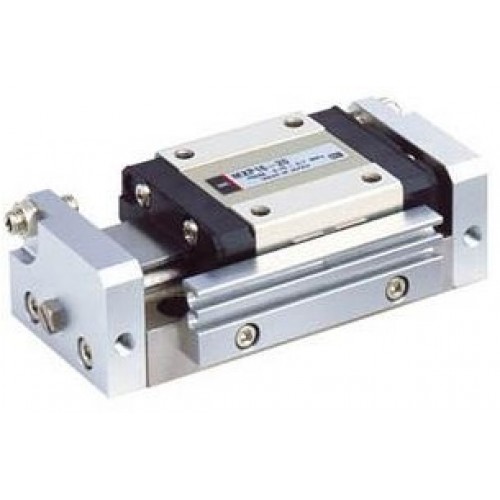

SMC Guided Air Cylinders 11/22-MXP, Air Slide Table, Clean Room

The MXP is ideal for applications that require high precision movement in short travel situations. The precision slide table has a machined guide with very tight tolerances that operates in conjunction with highly accurate recirculating ball bearings. This slide is capable of achieving parallelism within 0.02mm and non-rotation accuracy as low as 0.03 degrees. Two of the mounting surfaces allow work to be held to a tolerance +/-0.05mm plus the tolerance of the work piece. The slide contains two pistons that operate independently to supply the movement of the actuator.

• Precision air slide table, clean series
• Bore sizes: 6, 10, 12, 16 (mm)
• Strokes: 5mm through 30mm depending upon bore size
• With rubber or metal stopper or shock absorber
• Variety of switches with a variety of wire lead lengths
