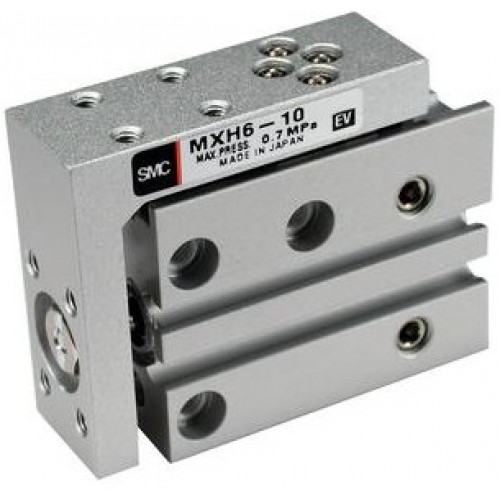

SMC Guided Air Cylinders MXH, Compact Slide Table, Linear Guide

The MXH compact slide table provides a convenient integration of an endless track linear guide and air cylinder, with higher load carrying capabilities and longer standard strokes when compared to previous series. The use of a linear guide provides outstanding displacement accuracy against moments, and excellent parallelism of travel. The compact narrow profile of the unit allows for parallel position of several slides in a limited space. The MXH is suitable for a wide range of industries, which require material or tool handling, and precision non-rotating accuracy. The cylinder can be mounted in 4 directions and piping can be connected from 3 sides. MXH is available in 4 bore sizes from 6mm to 10mm and standard strokes up to 60mm.
