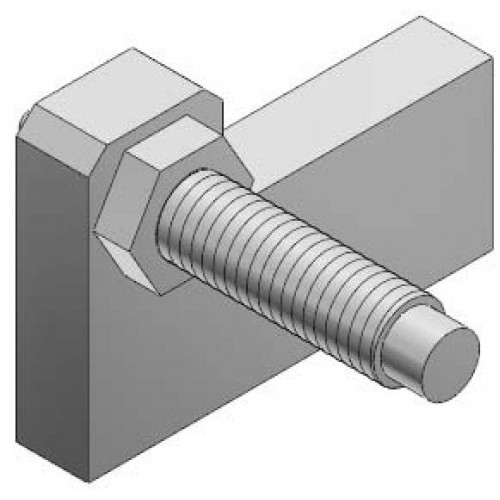

SMC Guided Air Cylinders MXS, Accessory, Stroke Adjuster

Applications that call for precise movement ranging from 10-150mm (1/2-6") typically require a cylinder and a precision guide. The MXS accomplishes this by integrating a cross roller bearing with a guide and two small air cylinders for compact force generation. The MXS is available in six sizes each with set stroke lengths and is standard with auto switch capability. Stroke adjustments are available for extend, retract, or both in ranges of 0-5mm, 0-15mm, and 0-25mm. In addition, there are many other standard options that include, shock absorbers, end lock, axial piping, and buffer.

• Available with stroke adjuster at extension or retraction end
• Available with shock absorber at extension or retraction end
• Applicable bore sizes: 6, 8, 12, 16, 20, and 25mmStandard or symmetric type
• Adjustable range for stroke adjuster (only): 5mm (standard), X11 (15mm), or X12 (25mm)
