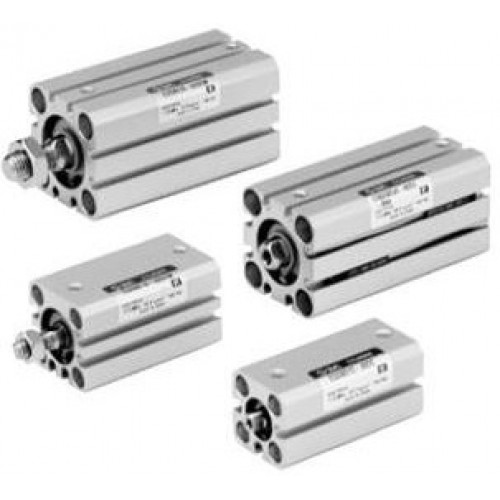

SMC Linear Compact Cylinders CQS C(D)QSY, Smooth Air Cylinder, Low Friction, Low Speed, Double Acting

The CQS compact cylinder is available for those small bore cylinder applications where saving space is a concern. The CQS offers standard long strokes (up to 300mm) in four bore sizes from 12 to 25mm. Long stroke versions incorporate a wear band and thicker piston to handle the increased bearing needs of the longer strokes. Both switch capable and non-switch capable body styles are the same, and switches can be mounted on three (12-16 bore) and four (20-25 bore) sides. An increased side load version (CQS*S) is available for more demanding applications.

• Minimum operating pressure 0.01 to 0.03 MPa
• The smooth operation can be maintained even at low speeds (5mm/sec)
• Bi-directional low-friction allows smooth operation during cylinder extend and retract
• Smooth operation with less sticking and slipping
• Pressure can be controlled regardless of its direction
