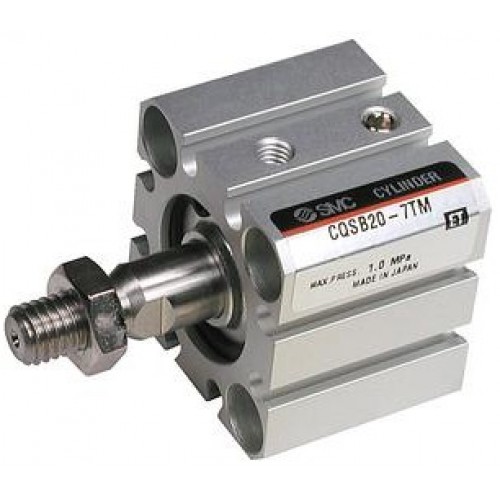

SMC Linear Compact Cylinders CQS C(D)QS, Compact Cylinder, Single Acting, Single Rod

The CQS compact cylinder is available for those small bore cylinder applications where saving space is a concern. The CQS offers standard long strokes (up to 300mm) in four bore sizes from 12 to 25mm. Long stroke versions incorporate a wear band and thicker piston to handle the increased bearing needs of the longer strokes. Both switch capable and non-switch capable body styles are the same, and switches can be mounted on three (12-16 bore) and four (20-25 bore) sides. An increased side load version (CQS*S) is available for more demanding applications.

• Spring extend or spring return
• Bore sizes in mm: 12, 16, 20, 25
• Strokes: 5mm & 10mm
• Mounts: through hole, both ends tapped, foot, front or rear flanges
• Variety of switches and a variety of lead wire lengths
