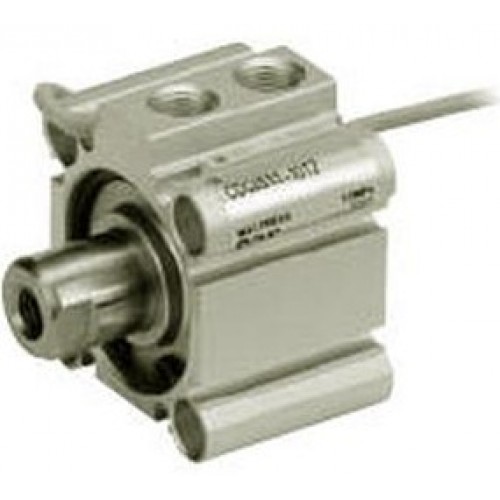

SMC Linear Compact Cylinders NCQ2-Z NC(D)Q2-Z, Compact Cylinder, Single Acting Single Rod w/Auto Switch Mounting Groove

SMC has redesigned the NCQ2 compact cylinder with a new body, making it possible to mount auto switches on any of the 4 surfaces, depending on the installation conditions.  Auto switch mounting grooves have replaced the NCQ2's mounting rails, preventing projection of auto switches and improving ease and safety of work.

• Single acting, single rod, compact cylinder
• Bore sizes (mm):  12, 16, 20, 25, 32, 40, 50
• Standard stroke range (mm):  5, 10, 20
• Mounting includes: Through hole (standard), threaded, clevis, foot, head flange, and rod flange
• Auto switch capable
