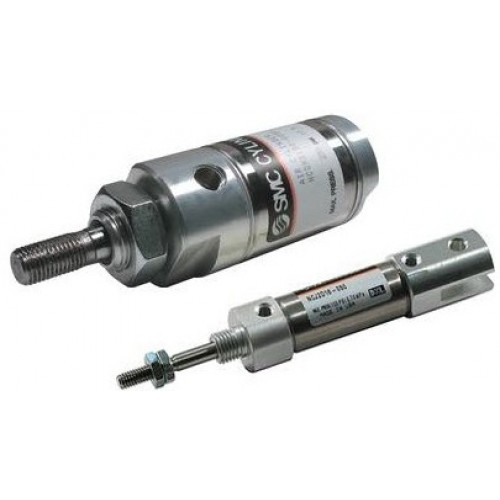

SMC cylinder Basic linear cylinders NCM NC(D)M-S/T, Stainless Steel Cylinder, Single Acting, Single Rod

Series NCM stainless steel cylinder offers space savings, high performance, and interchangeability with other stainless steel cylinders. A wear ring extends the seal life and a bronze rod bushing is standard on all bore sizes. The NCM is available in 4 mounting styles (front nose, double end, rear pivot, and block mount) as well as double rod and spring return or spring extend models. The NCM is auto-switch capable without any change in cylinder dimension. Bore sizes range from 7/16" to 2" and standard strokes from 1/2" to 12".

• Single acting single rod, spring return or spring extend
• Bore sizes (inch): 3/4, 7/8, 1 1/16, , 1 1/4, 1 1/2
• Maximum stroke:  up to 6" as standard
• Available with auto switches
