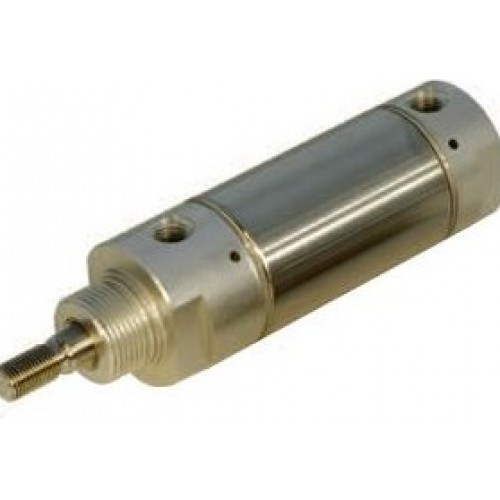

SMC cylinder Basic linear cylinders NCM NC(D)M-A, Stainless Steel Body Cylinder w/Adjustable Air Cushion

NC(D)M, Stainless Steel Cylinder, Double Acting, Single Rod w/Rod End Modifications

Series NCM stainless steel cylinder offers space savings, high performance, and interchangeability with other stainless steel cylinders. A wear ring extends the seal life and a bronze rod bushing is standard on all bore sizes. The NCM is available in 4 mounting styles (front nose, double end, rear pivot, and block mount) as well as double rod and spring return or spring extend models. The NCM is auto-switch capable without any change in cylinder dimension. Bore sizes range from 7/16" to 2" and standard strokes from 1/2" to 12".

• Available in 4 bore sizes
• Floating cushion seal
• Cushion adjustment is recessed so it doesn't protrude
• Piston wear ring to extend life
• Auto switch capable
