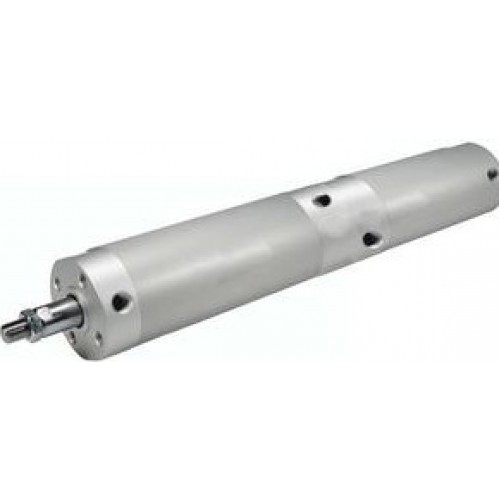

SMC cylinder Basic linear cylinders NCG NC(D)G, Cylinder, Double Acting, Single Rod w/XC10, XC11

The NCG provides precision mounting, short overall length, and high speed. Rubber bumpers are standard and an optional adjustable air cushion is available. Nine mounting styles include basic body, foot, single clevis, front or rear flange, front or rear trunnion, nose mount, and double clevis. Bore sizes range from 3/4" to 2 1/2" and standard stroke lengths from 1" to 12". The NCG series is auto-switch capable. Non-rotating and double rod are standard options.

• Double acting, single rod w/XC10 or XC11
• Bore sizes (in): 3/4, 1, 2, 1 1/4, 1 1/2, 2 1/2
• Mounts: basic, foot, flange, clevis or trunnion
• Variety of switches and lead wire lengths
