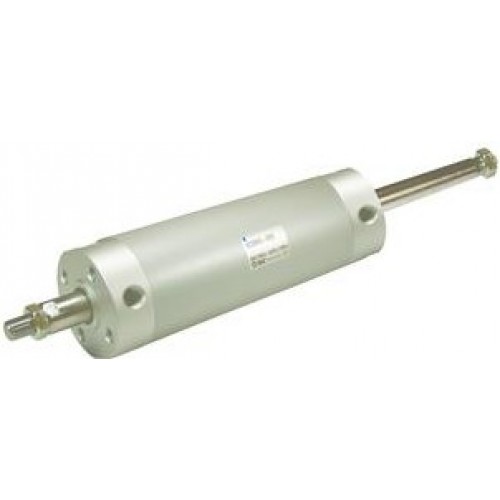

SMC cylinder Basic linear cylinders NCG NC(D)GW, High Speed/Precision Cylinder, Double Acting, Double Rod
NC(D)G, High Speed/Precision Cylinder, Double Acting, Single Rod w/Rod End Modifications
The NCG provides precision mounting, short overall length, and high speed. Rubber bumpers are standard and an optional adjustable air cushion is available. Nine mounting styles include basic body, foot, single clevis, front or rear flange, front or rear trunnion, nose mount, and double clevis. Bore sizes range from 3/4" to 2 1/2" and standard stroke lengths from 1" to 12". The NCG series is auto-switch capable. Non-rotating and double rod are standard options.
The NCG provides precision mounting, short overall length, and high speed. Rubber bumpers are standard and an optional adjustable air cushion is available. Nine mounting styles include basic body, foot, single clevis, front or rear flange, front or rear trunnion, nose mount, and double clevis. Bore sizes range from 3/4" to 2 1/2" and standard stroke lengths from 1" to 12". The NCG series is auto-switch capable. Non-rotating and double rod are standard options.
- Double rod high precision cylinder
- 6 bore sizes available: 20mm ~ 63mm
- Air cushion available
- Mounting styles: basic, axial foot, flange, trunnion
- Auto switch capable
