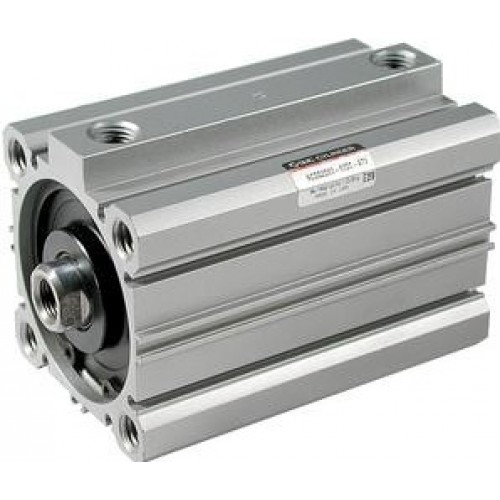

SMC cylinder Basic linear cylinders CQ2 C(D)Q2, Compact Cylinder, Single Acting, Single Rod
Series CQ2 compact cylinders provide a space-saving design and exceptional service life. They feature front snap ring design for easy access to internal parts. Available in single and double rod models, male and female thread design, double acting, spring return and spring extend. Choose from 13 bore sizes up to 200mm. Optional reed/solid state switches may be used. The aluminum extruded bodies, featuring through-hole and threaded body mounting, provide versatility and reliability in any design application. "In the U.S., the CQ2 can be manufactured until parts are depleted. See the new and improved CQ2-Z."
- Single acting spring return, or single acting spring extend
- Bore sizes in mm: 12, 16, 20, 25, 32, 40, 50
- Strokes 5mm, 10mm, & 20mm depending on bore size
- Mounts: through hole, both ends tapped, foot, front & rear flange, double clevis, rear boss
- Screw in piping or one-touch fittings
- Variety of switches and a variety of lead wire lengths
