SMC cylinder Basic linear cylinders CQ2-Z CQ2-Z, Accessory, Mounting Brackets
SMC has redesigned the CQ2 compact cylinder with a new body, making it possible to mount auto switches on any of the 4 surfaces, depending on the installation conditions. Auto switch mounting grooves have replaced the CQ2's mounting rails, preventing projection of auto switches and improving ease and safety of work.

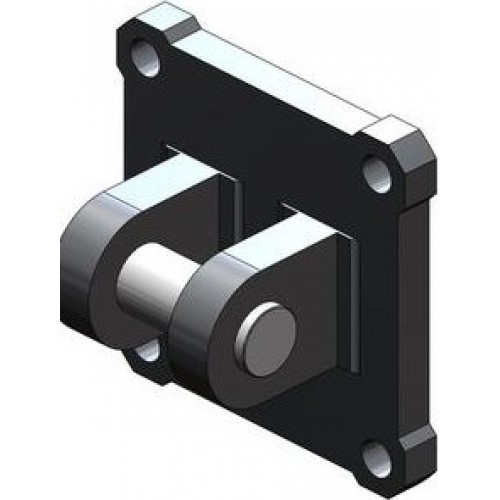

- CQ2-Z mounting brackets
- Type: flange, foot and double clevis
- Applicable to all bore sizes
SMC has redesigned the CQ2 compact cylinder with a new body, making it possible to mount auto switches on any of the 4 surfaces, depending on the installation conditions. Auto switch mounting grooves have replaced the CQ2's mounting rails, preventing projection of auto switches and improving ease and safety of work.
- Single and double knuckle joints
- Carbon steel material for bores 12, 16, 20, 25
- Cast iron material for bores 32, 40, 50, 63, 80, 100
CQ2/CQ2-Z, Accessory, Joint and Type A & B Mounting Bracket
SMC has redesigned the CQ2 compact cylinder with a new body, making it possible to mount auto switches on any of the 4 surfaces, depending on the installation conditions. Auto switch mounting grooves have replaced the CQ2's mounting rails, preventing projection of auto switches and improving ease and safety of work.
- Type A material: chromium molybdenum steel (nickel plated)
- Type B material: precision die-casting material equivalent to stainless steel 304
- Joint material: chromium molybdenum steel (nickel plated)
- Type A applicable bore: 32, 40
- Type B applicable bore: 50, 63
- Joint applicable bore: 100
CQ2/CQ2-Z Accessory, Knuckle Pin
SMC has redesigned the CQ2 compact cylinder with a new body, making it possible to mount auto switches on any of the 4 surfaces, depending on the installation conditions. Auto switch mounting grooves have replaced the CQ2's mounting rails, preventing projection of auto switches and improving ease and safety of work.
- Accessory: knuckle pin (common with double clevis pin)
- Material: carbon steel
- Applicable bore (mm): 12, 16, 20, 25, 32, 40, 50, 63, 80, 100
CQ2/CQ2-Z Accessory, Rod End Nut
SMC has redesigned the CQ2 compact cylinder with a new body, making it possible to mount auto switches on any of the 4 surfaces, depending on the installation conditions. Auto switch mounting grooves have replaced the CQ2's mounting rails, preventing projection of auto switches and improving ease and safety of work.
- Accessory: rod end nut
- Material: carbon steel
- Surface treatment: nickel plated
- Applicable bore (mm): 12, 16, 20, 25, 32, 40, 50, 63, 80, 100
CQ2/CQS, Double Clevis Pivot Bracket
SMC has redesigned the CQ2 compact cylinder with a new body, making it possible to mount auto switches on any of the 4 surfaces, depending on the installation conditions. Auto switch mounting grooves have replaced the CQ2's mounting rails, preventing projection of auto switches and improving ease and safety of work.
- Accessory: double clevis pivot bracket
- Material: carbon steel
- Surface treatment: nickel plated
- Applicable bore (mm): 12, 16, 20, 25, 32, 40, 50, 63, 80, 100
