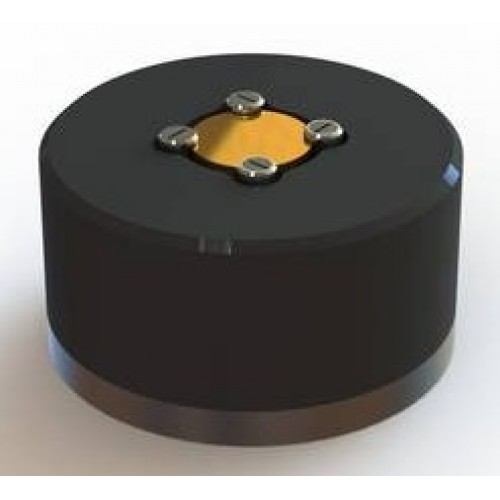

Piezo Actuators' Mechanisms DTT35XS
| Description: | The double tilt translator DTT is based on 2 pairs of APA 35XS. Three types of movement can be generated Z (translation), X and Y (tilt). |
|
| Performance: | Max No-load displacement(µm): 35; Angular displacement(mrad): 2.8;Dimensions(mm):Ø45*24; Angular Resolution(µrad): 0.02; Unloaded resonance frequency(Hz): 3200; | |
| Available options: | Strain gages, Vacuum, Eddy current sensor | |
| Status: | Preliminary |
