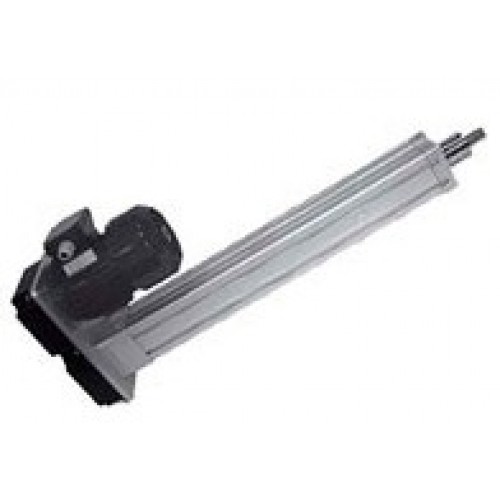

Thomson Precision Linear Actuators ECT Series ECT13-I10B03PB-4010
| GENERAL | |
| Product Family: | ECT130 Parallel Belt IEC100 AC Actuator System |
 |
|
| MECHANICAL | |
| Screw Type: | ball screw |
| Screw Lead mm/rev (in/rev): | 10 (.4) |
| Screw Diameter mm (in): | 40 (1.6) |
| Profile Size (w x h) mm (in): | 130 x 130 (5 x 5) |
| Motor Brake: | yes (230 Vac) |
| Lubrication: | single point lubrication |
| Motor Type: | asynchronous AC motor |
| Motor Feedback: | no |
| Motor Connection: | terminal box |
| Backlash mm (in): | 0.21 (.008) |
| Gear Box: | belt gear |
| Motor Voltage: | 3 x 400 Vac |
| Motor Power kW: | 3 |
| Motor Current A: | 6.1 |
| CE Approved (motor): | yes |
|
|
| PERFORMANCE | |
|
|
 |
|
| Max Dynamic Load (Fx) N (lbs): |
13300 (2990) |
| Max Dynamic Load (Fy,Fz) N (lbs): |
500 (112.4) |
| Max Dynamic Load Torque (My,Mz) Nm (lb-ft): |
150 (110.6) |
| Max No-Load Speed mm/s (in/s): |
175 (6.9) |
| Max Stroke Length mm (in): | 2000 (78.7) |
| Duty Cycle @ Max Force Ratings: | 100 % |
| Repeatability ± mm (in): | .05 (.002) |
| Column Load Limit N (lbs): | See Performance Diagram |
|
|
| ENVIRONMENT | |
| IP Rating: | IP65 standard |
| Temperature Range °C (°F): | -20 (-4) to 70 (158) |
| Protection Option: | S1 (wash down protection) |
