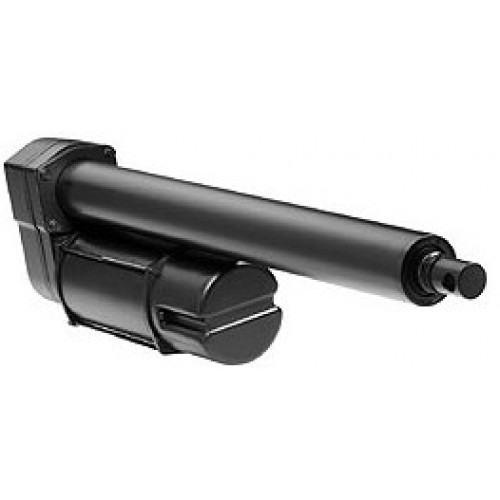

Thomson Linear Electrak AC Actuators A22-10B5-xxD
GENERAL | |
Product Family: | Electrak 5 Actuator |
Brand: | Thomson |
Available in: | North America, Europe, Asia |
PERFORMANCE | |
Actuator Voltage: | 230VAC @ 50/60Hz, 1ø *10uf capacitor necessary |
Max Dynamic Load N (lbs): | 4500 (1000) 6672 (1500) See custom service |
Max Static Load N (lbs): | 11350 (2500) |
No Load Speed mm/sec (in/sec): | 30 (1.1) |
Max Load Speed mm/sec (in/sec): | 25.4 (1) |
Std Stroke Lengths mm (in): | 100(4), 152(6), 200(8), 255(10), 300(12), 355(14), 406(16), 460(18), 508(20), 610(24) Custom lengths available |
Max Rated Current amps: | 1.35 |
Duty Cycle @ Max Load: | 25% (45 sec max ON time) |
Rated@Ambient Temp °C (°F): | 25 (77) |
MECHANICAL | |
Screw Type: | Ball |
Screw Lead mm (in): | 5.08 (0.2) |
Gear Ratio: | 10:1 |
Feedback Options: | Limit Switches (NA only) Potentiometer Manual Override |
End Play mm (in): | 1.02 (.04) |
Mounting: | Clevis (0-150° rotation optional - EU only) |
Restraining Torque Nm (#-in): | 11.3 (100) |
Weight kg (lbs): | < 8.44 (18.6) @ max length |
Brake (Holding): | Integral Wrap-Spring |
Brake (Dynamic): | No |
Brake (Anti Coast): | Yes (pawl type) |
Manual Override: | Yes, optional |
Mid Stroke Protection: | Overload Clutch (Ball Detent) |
End of Stroke Protection: | Overload Clutch (Ball Detent) |
Motor Overload Protection: | Thermal switch (auto reset) |
ENVIRONMENT | |
IP Rating: | IP 45 |
Temperature Range°C (°F): | -25 to 65 (-15 to 150) |
CONNECTION | |
Cable Length mm (in): | 600 (23) |
Connectors: | Packard Electric 56 Series (NA only) Male: 2984883 w/terminal 2962987 Female: 2973781 w/terminal 2962573 |
Wire Size mm2 (AWG): | .823 (18) NA only 1.5 (15) EU only |
CERTIFICATES | |
CE: | Yes - in US optional |
UL Recognized: | Yes |
CSA: | Yes |
