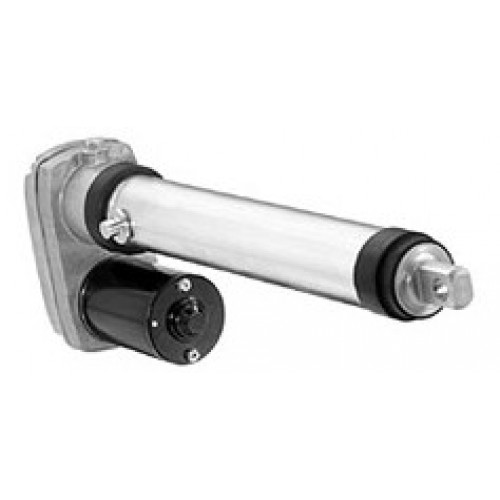

Thomson Linear Electrak PPA-DC Actuators PPA12-18B65
| GENERAL | |
| Product Family: | Electrak PPA-DC Actuator |
| Brand: | Thomson |
| Available in: | North America, Europe, Asia |
 |
|
| PERFORMANCE | |
| Actuator Voltage: | 12 VDC |
| Max Dynamic Load N (lbs): | 3330 (750) |
| Max Static Load N (lbs): | 13350 (3000) |
| No Load Speed mm/sec (in/sec): | 32 (1.26) |
| Max Load Speed mm/sec (in/sec): | 28 (1.1) |
| Std Stroke Lengths mm (in): | 100(4), 200(8), 300(12), 460(18), 610(24), 915(36) Custom lengths available |
| Max Rated Current amps: | 21.5 |
| Duty Cycle @ Max Load: | 0.3 |
| Rated@Ambient Temp °C (°F): | 25 (77) |
|
|
| MECHANICAL | |
| Screw Type: | Ball |
| Screw Diameter mm (in): | 16 (.63) |
| Screw Lead mm (in): | 5 (.2) |
| Gear Ratio: | 18:1 |
| Feedback Options: | Fixed Limit Switches Potentiometer (10Kohms) Encoders Protective Bellows |
| End Play mm (in): | 1.02 (.04) |
| Mounting: | Front Clevis, Rear Trunnion |
| Restraining Torque Nm (#-in): | 11 (100) |
| Weight kg (lbs): | < 11 (25) |
| Brake (Holding): | Integral Wrap-Spring |
| Brake (Dynamic): | No |
| Brake (Anti Coast): | No |
| Manual Override: | Yes, optional |
| Mid Stroke Protection: | Overload Clutch (Ball Detent) |
| End of Stroke Protection: | Overload Clutch (Ball Detent) Fixed Limit Switches (optional) |
| Motor Overload Protection: | Thermal switch (auto reset) |
|
|
| ENVIRONMENT | |
| IP Rating: | IP 52 |
| Temperature Range°C (°F): | -25 to 65 (-15 to 150) |
|
|
| CONNECTION | |
| Cable Length mm (in): | 420 (16.5) |
| Connectors: | Flying leads |
| Wire Size mm2 (AWG): | 2.08 (14) |
|
|
| CERTIFICATES | |
| CE: | Yes - in US optional |
