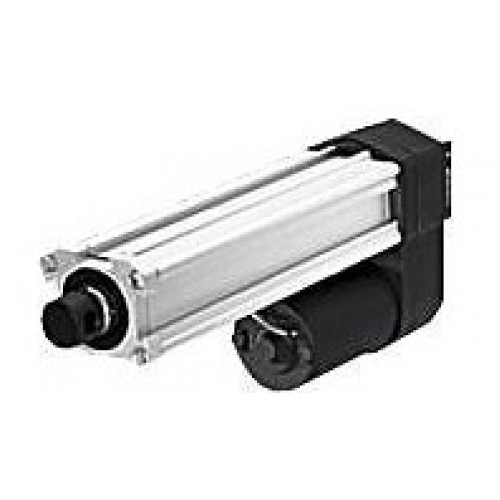

Thomson Linear Electrak LA14 Actuators DA24-05B65-xxxx
| GENERAL | |
| Product Family: | Electrak LA14 Actuator |
| Brand: | Thomson |
| Available in: | Europe, Asia |
 |
|
| PERFORMANCE | |
| Actuator Voltage: | 24 VDC |
| Max Dynamic Load N (lbs): | 2250 (505) |
| Max Static Load N (lbs): | 18000 (4047) |
| No Load Speed mm/sec (in/sec): | 61 (2.4) |
| Max Load Speed mm/sec (in/sec): | 37 (1.46) |
| Std Stroke Lengths mm (in): | 50(2), 100(4), 150(6), 200(8), 250(10), 300(12), 355(14), 406(16), 460(18), 508(20), 610(24) Custom lengths available |
| Duty Cycle @ Max Load: | 25% |
|
|
| MECHANICAL | |
| Screw Type: | Ball |
| Screw Diameter mm (in): | 16.9 (0.625) |
| Screw Lead mm (in): | 5.08 (0.2) |
| Gear Ratio: | 5:1 |
| Feedback Options: | Potentiometer, Manual Override |
| End Play mm (in): | 1 (.04) |
| Mounting: | Clevis/Trunnion |
| Anti-Rotation Mechanism: | Yes |
| Restraining Torque Nm (#-in): | 0 (0) |
| Weight kg (lbs): | < 7.6 (16.8) |
| Brake (Holding): | Yes |
| Brake (Dynamic): | No |
| Manual Override: | No, optional |
| Mid Stroke Protection: | Overload Clutch |
| End of Stroke Protection: | Overload Clutch |
| Motor Overload Protection: | auto reset thermal switch |
|
|
| ENVIRONMENT | |
| IP Rating: | IP65 |
| Temperature Range°C (°F): | -25 to 65 (-15 to 150) |
|
|
| CONNECTION | |
| Cable Length mm (in): | 165 (6.50) |
| Connectors: | Included |
| Wire Size mm2 (AWG): | 2 |
|
|
| CERTIFICATES | |
| CE: | Yes |
