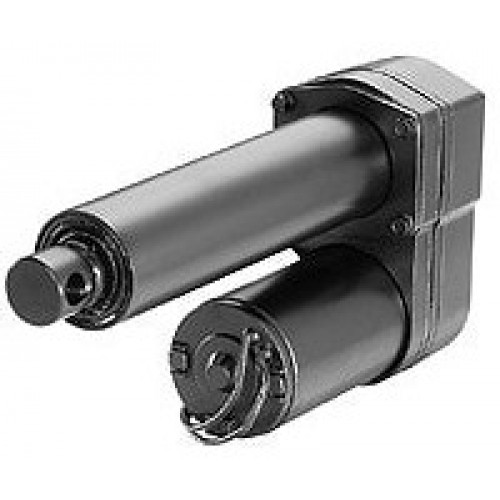

Thomson Linear Actuators Electrak 2 Actuators D12-10A5-xxD
| GENERAL | |
| Product Family: | Electrak 2 Actuator |
| Brand: | Thomson |
| Available in: | North America |
 |
|
| PERFORMANCE | |
| Actuator Voltage: | 12 VDC |
| Max Dynamic Load N (lbs): | 1112 (250) |
| Max Static Load N (lbs): | 4448 (1000) |
| No Load Speed mm/sec (in/sec): | 30.5 (1.2) |
| Max Load Speed mm/sec (in/sec): | 25.4 (1) |
| Std Stroke Lengths mm (in): | 100(4), 200(8), 300(12), 460(18), 610(24) Custom lengths available |
| Max Rated Current amps: | 20 |
| Duty Cycle @ Max Load: | 0.25 |
| Rated@Ambient Temp °C (°F): | 25 (77) |
|
|
| MECHANICAL | |
| Screw Type: | Acme |
| Screw Lead mm (in): | 5.08 (0.2) |
| Gear Ratio: | 10:1 |
| Feedback Options: | Limit Switches Potentiometer |
| End Play mm (in): | 2.03 (.08) |
| Mounting: | Clevis (90° rotation optional) |
| Anti-Rotation Mechanism: | Yes (Tube can rotate 7º max) |
| Restraining Torque Nm (#-in): | 7.34 (65) |
| Weight kg (lbs): | < 5.17 (11.4) |
| Brake (Holding): | Self-locking |
| Brake (Dynamic): | No |
| Brake (Anti Coast): | No |
| Manual Override: | Yes, optional |
| Mid Stroke Protection: | Overload Clutch (Ball Detent) |
| End of Stroke Protection: | Overload Clutch (Ball Detent) |
| Motor Overload Protection: | Thermal switch (auto reset) |
|
|
| ENVIRONMENT | |
| IP Rating: | IP 65 |
| Temperature Range°C (°F): | -25 to 65 (-15 to 150) |
|
|
| CONNECTION | |
| Cable Length mm (in): | 190 (7.5) |
| Connectors: | Flying leads or Packard Electric 56 Series Male: 2984883 w/terminal 2962987 Female: 2973781 w/terminal 2962573 |
| Wire Size mm2 (AWG): | 2.08 (14) |
|
|
| CERTIFICATES | |
| CE: | Yes - in US optional |
