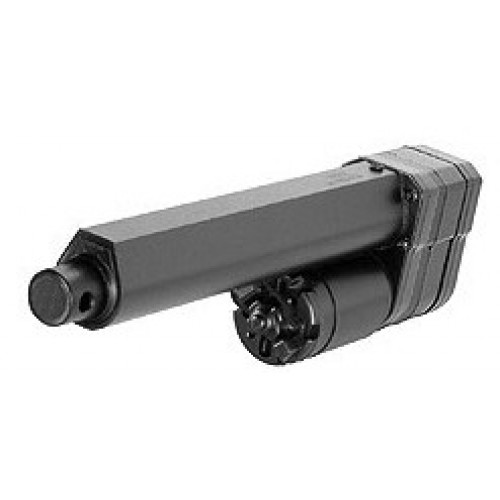

Thomson Linear Actuators Electrak 1 (SP) Actuators S24-17A08-xx
| GENERAL | |
| Product Family: | Electrak 1 Actuator |
| Brand: | Thomson |
| Available in: | Europe, Asia |
 |
|
| PERFORMANCE | |
| Actuator Voltage: | 24 VDC |
| Max Dynamic Load N (lbs): | 340 (75) |
| Max Static Load N (lbs): | 1300 (300) |
| No Load Speed mm/sec (in/sec): | 26 (1) |
| Max Load Speed mm/sec (in/sec): | 17 (.65) |
| Std Stroke Lengths mm (in): | 25(1), 50(2), 75(3), 100(4), 125(5), 150(6) Custom lengths available |
| Max Rated Current amps: | 2.8 |
| Duty Cycle @ Max Load: | 0.25 |
| Rated@Ambient Temp °C (°F): | 25 (77) |
|
|
| MECHANICAL | |
| Screw Type: | Acme |
| Screw Lead mm (in): | 6.35 (.25) |
| Gear Ratio: | 17:1 |
| End Play mm (in): | .91 (.036) |
| Mounting: | Clevis |
| Anti-Rotation Mechanism: | Yes (Tube can rotate 7º max) |
| Restraining Torque Nm (#-in): | None - Internally restrained |
| Weight kg (lbs): | < .68 (1.5) @ max length |
| Brake (Holding): | Self-locking |
| Brake (Dynamic): | No |
| Brake (Anti Coast): | No |
| Manual Override: | No |
| Mid Stroke Protection: | No |
| End of Stroke Protection: | Fixed limit switches |
| Motor Overload Protection: | Thermal switch (auto reset) |
|
|
| ENVIRONMENT | |
| IP Rating: | IP 65 |
| Temperature Range°C (°F): | -25 to 65 (-15 to 150) |
|
|
| CONNECTION | |
| Cable Length mm (in): | 110 (4.5) |
| Connectors: | Flying leads or Packard Electric Pack-Con Male: 8911773 w/terminal 6294511 Female: 8911772 w/terminal 8911639 |
| Wire Size mm2 (AWG): | .823 (18) |
|
|
| CERTIFICATES | |
| CE: | Yes - in US optional |
