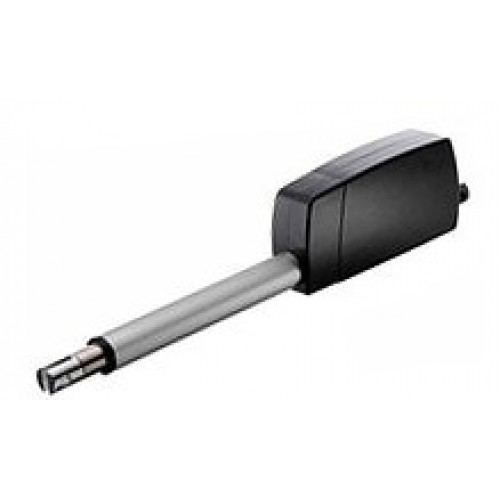

W1202-58Axx-NxxB
| GENERAL | |
| Product Family: | WhisperTrak Linear Actuator |
| Brand: | Thomson |
 |
|
| PERFORMANCE | |
| Actuator Voltage: | 12 VDC |
| Max Dynamic Load N (lbs): | 2000 (450) |
| Max Static Load N (lbs): | 2000 (450) |
| No Load Speed mm/sec (in/sec): | 5.8 (.23) |
| Max Load Speed mm/sec (in/sec): | 4.0 (.16) |
| Std Stroke Lengths mm (in): | 100(4), 200(8), 300(12), 400(16), 500(20) |
| Max Rated Current amps: | 4.5 |
| Max Stall Current amps: | 14 |
| Duty Cycle @ Max Load: | 10% |
| Avg Life Cycle: | 10,000 |
|
|
| MECHANICAL | |
| Screw Type: | Acme |
| Sound Level dBa: | <45 |
| Anti-Rotation Mechanism: | Yes - optional |
| Electronic Limit Switches: | No |
|
|
| ENVIRONMENT | |
| IP Rating: | IP 67 |
| Temperature Range°C (°F): | -25 to 40 (-13 to 104) |
|
|
| CERTIFICATES | |
| CE: | Yes |
| UL Recognized: | Yes |
