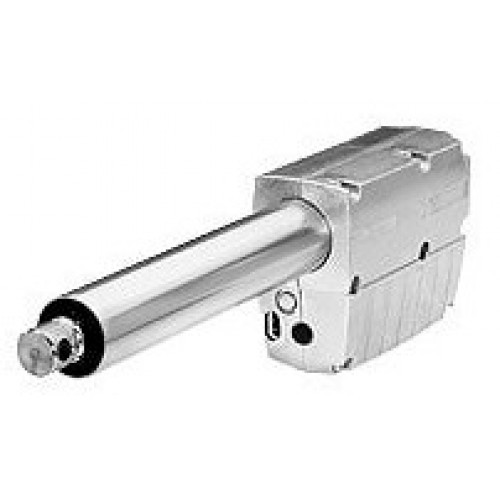

Thomson Linear Electrak Pro Actuators PR12-02-2A65
| GENERAL | |
| Product Family: | Electrak Pro Actuator |
| Brand: | Thomson |
| Available in: | North America, Europe, Asia |
 |
|
| PERFORMANCE | |
| Actuator Voltage: | 12 VDC |
| Max Dynamic Load N (lbs): | 1125 (250) |
| Max Static Load N (lbs): | 2225 (500) |
| No Load Speed mm/sec (in/sec): | 50 (2) |
| Max Load Speed mm/sec (in/sec): | 43 (1.7) |
| Std Stroke Lengths mm (in): | 100(4), 150(6), 200(8), 300(12) Custom lengths available |
| Duty Cycle @ Max Load: | 0.25 |
| Rated@Ambient Temp °C (°F): | 25 (77) |
|
|
| MECHANICAL | |
| Screw Type: | Acme |
| Feedback Options: | Programmable Limit Switches Linear Potentiometer Encoder End of stroke outputs ELM trip output Signal Follower Input PWM speed control monitor Black Paint Low-voltage Power Switching |
| End Play mm (in): | 1.02 (.04) |
| Mounting: | Clevis |
| Anti-Rotation Mechanism: | Yes - optional |
| Restraining Torque Nm (#-in): | 17 (150) 0 w/Anti-rotation option |
| Weight kg (lbs): | < 3.9 (8.5) |
| Brake (Holding): | Self-locking |
| Brake (Dynamic): | Yes |
| Brake (Anti Coast): | No |
| Manual Override: | Yes |
| Mid Stroke Protection: | Electronic load monitoring |
| End of Stroke Protection: | Electronic load monitoring |
| Motor Overload Protection: | Electronic load monitoring |
|
|
| ENVIRONMENT | |
| IP Rating: | IP 66 (IP 67 optional) |
| Temperature Range°C (°F): | -40 to 85 (-40 to 185) |
|
|
| CONNECTION | |
| Connectors: | Delphi Metri-Pack 280 (Integrated in housing) |
|
|
| CERTIFICATES | |
| CE: | Yes |
