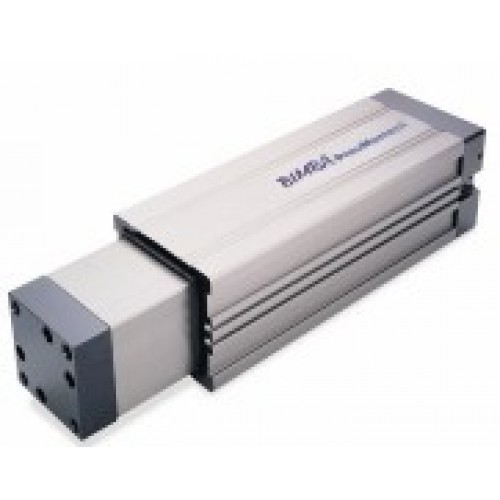

Bimba PneuMoment® Pneumatic Actuator

With eight PTFE impregnated bearing pads and a hard coat anodized load beam, the PneuMoment® pneumatic actuator is capable of moving loads up to 700 lbs. and moments up to 7000 inch-lbs. (Application and bore size dependent).  No lubrication is needed for the bearings, although standard air line lubrication should be used to enhance the actuator’s seal life.

• Bore sizes for the PneuMoment® pneumatic actuator:  1-1/16”, 1-1/2”, 2”, 2-1/2”
• Standard stroke lengths:  1” to 15” (Custom stroke lengths available to 30”)
• Maximum operating pressure:  150 psi
• Auxiliary ports transmit air or vacuum through the actuator to operate automation devices
• Available in U.S. customary units (inch) or metric
• Built-in track for position sensing switches
