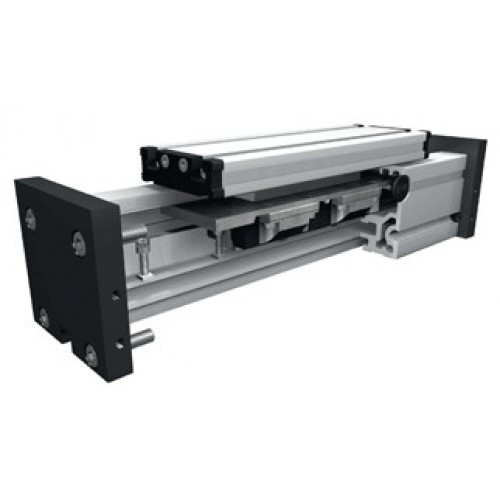

Nook NON-DRIVEN MODULAR ACTUATORS QSR series
QSR Features
Non-Driven actuators are intended to be with either a screw or belt driven actuators, providing linear support over an extended width. Used in conjunction with the QSZ.
| Details | Speed | Forces and Torques | ||||||||||||
| Product | Size | Speed Maximum [m/s] | Fx [N] 10000 km | Fy [N] 10000 km | Fz [N] 10000 km | Mx [Nm] 10000 km | My [Nm] 10000 km | Mz [Nm] 10000 km | Fx [N] 5000 km | Fy [N] 5000 km | Fz [N] 5000 km | Mx [Nm] 5000 km | My [Nm] 5000 km | Mz [Nm] 5000 km |
| QSR 60 | ||||||||||||||
| 60 | 5 | - | 990 | 2500 | 23 | 73 | 70 | - | 1410 | 3520 | 33 | 104 | 100 | |
| QSR 80 | ||||||||||||||
| 80 | 5 | - | 2550 | 6050 | 75 | 222 | 210 | - | 3570 | 8500 | 107 | 310 | 296 | |
| QSR 100 | ||||||||||||||
| 100 | 5 | - | 2900 | 7270 | 101 | 311 | 292 | - | 7080 | 10300 | 142 | 439 | 412 | |
