Nook BELT DRIVEN MODULAR ACTUATORS QSZE
QSZE FEATURES

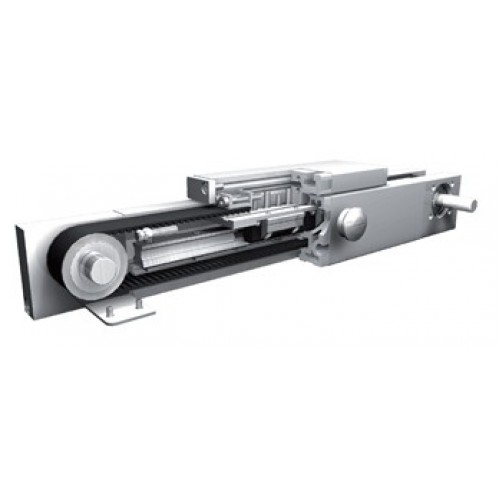

Similar to the QSZ, the QSZE is driven by an trapped linear belt that can be adjusted to reduce lash and is driven along a single internal profile rail. This unit consists of a square aluminium profile with an integrated roller guide and is covered by a stainless steel sheet (thickness 0.37mm, material 1.4301). The pulleys have maintenance-free ball bearings. Belt tension can be readjusted by a simple screw adjustment device in the carriage.
The QSZE is ideal for applications in clean rooms with a clean-room classifications of 1.000 (corresponding to US Fed. Standard 209 E).
| Details | Speed | Forces and Torques | ||||||||||||
| Product | Size | Speed Maximum [m/s] | Fx [N] 10000 km | Fy [N] 10000 km | Fz [N] 10000 km | Mx [Nm] 10000 km | My [Nm] 10000 km | Mz [Nm] 10000 km | Fx [N] 5000 km | Fy [N] 5000 km | Fz [N] 5000 km | Mx [Nm] 5000 km | My [Nm] 5000 km | Mz [Nm] 5000 km |
| QSZE 60 | ||||||||||||||
| 60 | 5 | 800 | 990 | 2500 | 23 | 73 | 70 | 894 | 1410 | 3520 | 33 | 104 | 100 | |
| QSZE 80 | ||||||||||||||
| 80 | 5 | 1800 | 2250 | 6050 | 75 | 222 | 210 | 1900 | 3570 | 8500 | 107 | 310 | 296 | |
| QSZE 100 | ||||||||||||||
| 100 | 5 | 3800 | 2900 | 7270 | 101 | 311 | 292 | 4000 | 4080 | 10300 | 142 | 439 | 412 | |
