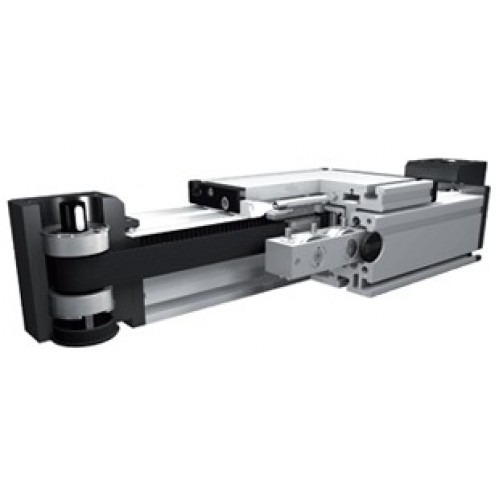

The carriage is driven by an internal linear belt with a vertical drive mount that can be adjusted to reduce lash and is driven along the internal roller bearings. The pulleys have maintenance-free ball bearings. Belt tension can be readjusted by a simple screw adjustment device in the carriage.

The openings of the guide body are sealed with 3 stainless steel cover bands to protect the guide from splash water and dust. Alternatively, the opening can also be covered with a bellow or can be delivered without cover bands.

DLVZ Actuators are available in multiple configurations;

• Standard Carriage Length
• Multiple Extended Carriage Lengths
•

  	Details	Speed	Forces and Torques
  Product	Size	Speed Maximum [m/s]	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
  DLVZ 120 Extended Carriage 6 Split Rollers
  	120	3	800	900	1000	125	120	90	894	1100	1250	150	140	100
  DLVZ 160 Extended Carriage 6 Split Rollers
  	160	4	840	2000	2800	320	300	150	1000	3000	3500	400	360	180

•
