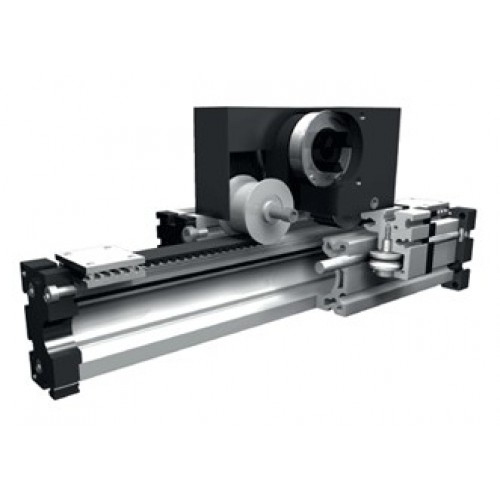

Nook BELT DRIVEN MODULAR ACTUATORS ELSZ Extended Carriage

ELSZ FEATURES

The carriage is driven by an external linear belt that can be adjusted to reduce lash and is driven along the external roller bearings. The pulleys have maintenance-free ball bearings. Belt tension can be readjusted by a simple screw adjustment device in the carriage.

The ELSZ is a carriage driven actuator with single fixed belt. They come with either a standard width belt, or a wide belt for greater capacity.

ELSZ Actuators are available in multiple configurations;

  • Standard Length Carriage
  • Standard Length Wrap Around Carriage (WAC)
  • Extended Length Carriages
  • Extended Length Wrap Around Carriage (WAC)
  •   Details Speed Forces and Torques
    Product Size Speed Maximum [m/s] Fx dynamic [N] Fy dynamic [N] Fz dynamic [N] Mx dynamic [Nm] My dynamic [Nm] Mz dynamic [Nm] Fx static [N] Fy static [N] Fz static [N] Mx static [Nm] My static [Nm] Mz static [Nm]
    ELSZ 40 Extended Carriage
      40 4 350 700 650 20 18 25 390 1200 900 25 32 35
    ELSZ 60 Extended Carriage
      60 5 800 2000 1100 43 70 100 894 3000 1700 67 90 120
    ELSZ 60S Extended Carriage
      60S 7 800 3100 1600 65 140 170 894 4100 2160 88 190 230
    ELSZ 80 Extended Carriage
      80 6 1800 2000 1100 55 80 120 1900 3000 1700 90 110 150
    ELSZ 80S Extended Carriage
      80S 8 1800 3600 1800 140 230 220 1900 4600 3000 170 270 300
    ELSZ 100 Extended Carriage
      100 8 3800 6500 2200 230 270 500 4000 8000 3600 300 400 750
    ELSZ 125 Extended Carriage
      125 10 5750 9000 4500 450 600 1150 5900 12000 6000 600 750 1350
