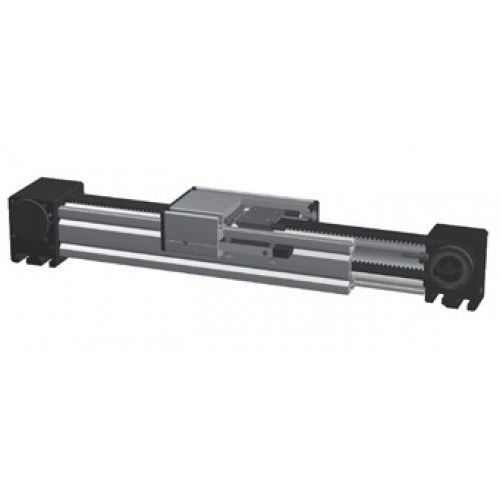

The carriage, which is driven by a linear belt that can be adjusted to reduce lash and is driven along the V-guides. The pulleys have maintenance-free ball bearings. Belt tension can be readjusted by a simple screw adjustment device in the carriage. This device can also be used for symmetrical adjustment of two or more linear units running parallel.

EGZ Actuators are available in multiple configurations;

• Single Carriage
• Single Wrap Around Carriage (WAC)
•

  	Details	Speed	Forces and Torques
  Product	Size	Speed Maximum [m/s]	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
  EGZ 30
  	30	2	180	60	60	5	6	7	200	90	90	10	13	14
  EGZ 40
  	40	2	350	315	450	18	40	30	390	350	500	20	44	33
  EGZ 60
  	60	2	800	450	675	30	70	50	894	500	750	33	77	55
  EGZ 80
  	80	2	1800	900	1000	75	200	150	1900	1000	1125	82	220	165
