Nook COMMERCIAL CLEVIS TO CLEVIS ACTUATORS COMMERCIAL SERIES ND8 DC ACTUATOR FEATURES

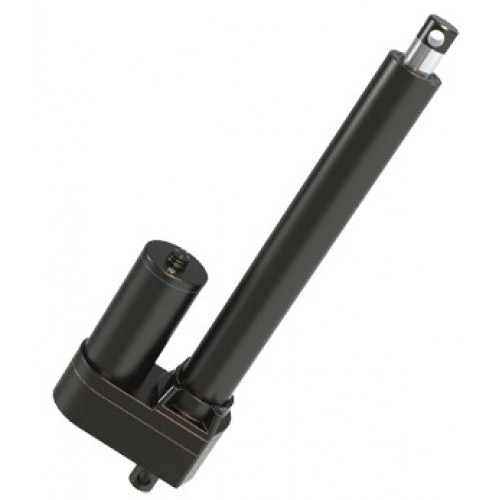

The ND8 Linear Actuator is an economical, general purpose DC actuator designed for relatively light load applications. It comes equipped with either a ball screw or an acme screw. The ball screw version is equipped with a brake to prevent backdriving. Options are available including potentiometer and adjustable limit switches.

Features

• Stainless steel extension tube
• High efficiency ball screw
• Working temperature: -25°C to +65°C
• Static load capacity: 13600N
• Powder metallurgy gears
• No back driving
• Gear ratios: 5:1, 10:1, 20:1, 30:1, 40:1
• Overload protection by clutch
• Travel length: 100 - 600 mm
• Duty cycle: 25%
• IP65

Options

• Potentiometer
• Hall Effect Sensor
