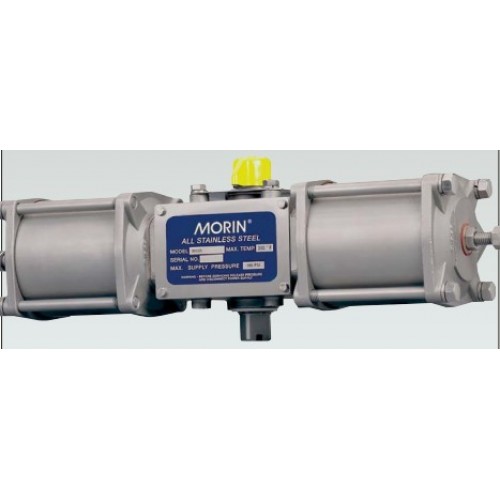

Morin Series S Pneumatic Actuator
Stainless Steel Quarter-turn
Spring Return and Double Acting Actuators
Output Torques to 238,000 lb. in. (26,894 Nm)
General Application
Designed for 'on-off' or modulating control of any quarter-turn ball, butterfly, rotary plug or damper style valve applications. To be used in chemical process, food & beverage, iron & steel, off-shore marine, pharmaceutical, power, oil & gas, pulp & paper, and textile industries.
Innovative stainless steel construction as standard provides superior corrosion resistance both internally and externally.
Scotch yoke design using precision bearings eliminates dead band in the yoke mechanism, providing the greatest torque output at the beginning and end of stroke.
Precision roller bearings, made from hardened stainless steel, produce a longer-lasting, high performance actuator.
Bi-directional travel stops provide accurate valve rotation adjustment.
Teflon® piston bearings, piston rod bushings and output shaft bushings provide longer life, reduce maintenance, and require no lubrication.
Universal design position indicator and pointer allows for either parallel or perpendicular mounting.
Stainless steel construction allows proximity switches to be direct-mounted in the actuator housing, eliminating the need to mount bracket and cam assemblies on top of the actuator.
Actuator drive slot allows mounting of accessories closer to the actuator, resulting in a more compact, precise assembly, and eliminates the need for coupling.
Spring return model design requires no special tools to safely and easily disarm the spring in the field, reducing down time and providing a 'man safe' spring.
Morin Pneumatic Actuator S Series 1480
Morin Pneumatic Actuator S Series 1150
Morin Pneumatic Actuator S Series 740
Morin Pneumatic Actuator S Series 575
Morin Pneumatic Actuator S Series 420
Morin Pneumatic Actuator S Series 370
Morin Pneumatic Actuator S Series 270
Morin Pneumatic Actuator S Series 210
Morin Pneumatic Actuator S Series 144
Morin Pneumatic Actuator S Series 135
Morin Pneumatic Actuator S Series 100
Morin Pneumatic Actuator S Series 072
Morin Pneumatic Actuator S Series 046
Morin Pneumatic Actuator S Series 036
Morin Pneumatic Actuator S Series 023
Morin Pneumatic Actuator S Series 012
Morin Pneumatic Actuator S Series 006
Morin Pneumatic Actuator S Series 003
