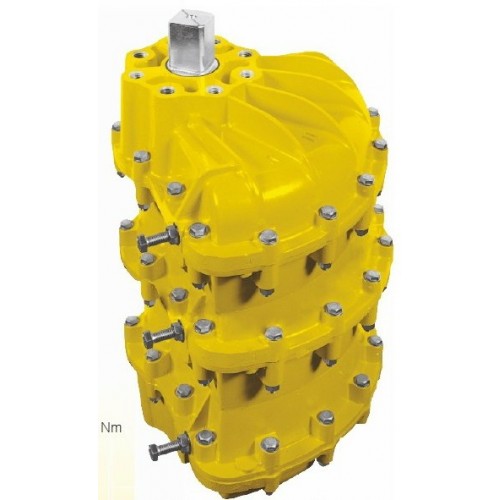

Kinetrol actuator Model 30

Specification
Output Torque
168000 lbf ins/19140 Nm
at 100 psi/7 bar
Angle of Travel
(adjustable)
80!a - 100
(restricted travel
versions available)
Displaced Volume
3 3
3050 in /50025 cm
Finish
Epoxy stove enamel
Weight
601.91 lb/273 kg
(excluding coupling)

Air Ports/Mount Hole Details
Model Air Ports Mount Holes &Accessory
Mount Holes
304-100 G1 8 x M30 x 50 deep on 226.3 PCD
4 x M5 x 8 deep
1
307-100 1 NPT 8 x 1 /  UNC x 2.00!
8
deep on 8.91!± PC
4 x 10-24 UNC x 0.31!± dee
