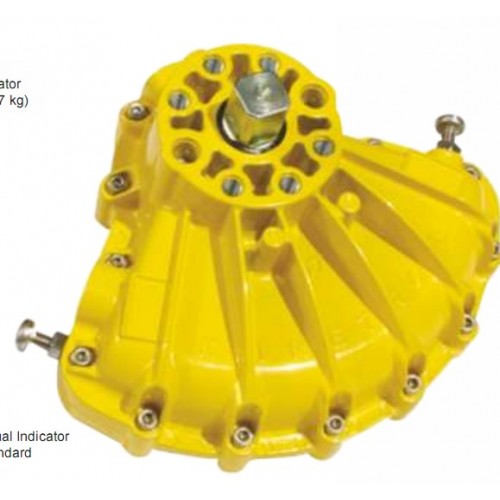

Kinetrol actuator Model 07

Specification
Output Torque
1080 lbf ins/124 Nm
at 100 psi/7 bar
Angle of Travel
(adjustable)
80!a - 100
(restricted travel
versions available)
Displaced Volume
3 3
18.3 in /300 cm
Finish
Epoxy stove enamel
Weight
6.91 lb/3.13 kg
(excluding coupling)

Air Port/Mount Hole Details
Model Air Ports Mount Holes & Accessory
  Mount Holes
1
074-100 G / 4 x M8 x 16 deep on 50.9 PCD
4
2 x M8 x 16 deep on 50.8 PCD
1 5
077-100 / NPT 4 x / UNC -18 x 0.63!
4 16
deep on 2.00!± PC
5
 2 x / UNC -18 x 0.63!
16
deep on 2.00!± PC
