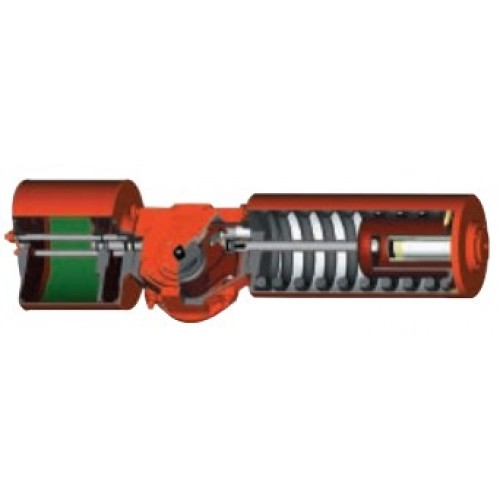

Apollo G series actuator

Spring return or double acting, quarter turn, scotch yoke actuators. Torque ranges from 10,000 in.lb. to +22,000 in. lb. NAMUR The shaft driven accessory interface conforms to the NAMUR standard and is identical on all G-Series actuators, allowing for standardization of accessory mounting hardware and installation practices • Pneumatic and hydraulic scotch-yoke actuators • Automates ball, butterfly, plug valves and any other 90° rotating mechanisms • Salt Spray Testing per ASTM B117 criteria. Construction features prevent water ingress, allowing G-Series actuators to meet IP 66 and IP 67M specifications and severe high pressure water deluge test • Operating Ranges G-Series double acting actuators produce guaranteed minimum torque outputs from 10,000 lb-in. up to 6,000,000 lb-in. The spring return units produce spring torques from 2,500 lb-in. to 3,000,000 lb-in. • Standard operating pressures: Pneumatic — to 200 psig (14 BAR) • Standard operating temperature is -20°F to +200°F (-29°C to +93°C) Optional trims available: 0°F to +350°F (-18°C to +177°C) -50°F to +180°F (-46°C to +82°C) • Mechanical and hydraulic manual overrides are available • MSS and ISO Valve Mounting The G-Series valve interface meets the dimensional requirements of MSS SP-101 or ISO 5211 defined for each torque range Double Acting G1 Pneumatic Actuator Torque Chart Output Torque (in-lbs) Part No. 3TG100800 3TG100900 3TG101000 3TG101200 3TG101400 Actuator Stroke Operating Pressure (psig) Model Position 40 50 60 70 80 90 100 110 120 150 175 200 G01008 Start/End 12465 14543 16620 18698 20775 22853 24930 31163 36356 41550 Minimum 6579 7675 8772 9868 10965 12061 13158 16447 19188 21929 G01009 Start/End 10593 13241 15890 18538 21186 23835 26483 29131 31779 39724 Minimum 5591 6989 8386 9784 11182 12579 13977 15375 16772 20966 G01010 Start/End 14046 17557 21069 24580 28092 31603 35115 38626 Minimum 7413 9266 11120 1973 14826 16680 18533 20386 G01012 Start/End 20133 25166 30199 35232 Minimum 10626 13282 15938 18595 G01014 Start/End 24482 30603 36723 Minimum 12921 16152 19382Torque Ratings G Series Actuator Stroke Operating Pressure (psig) Model Position 40 50 60 70 80 90 100 110 120 150 175 200 All published torques are guaranteed minimum values. G Series Pneumatic Double-Acting Actuator Torque Chart Output Torque (in-lbs) G01008-SR4 11614 5551 7628 9706 11783 13861 20093 25287 30481 5708 2439 3543 4648 5752 6849 10138 12880 15621 10015 3783 5861 7938 10016 12093 18326 23520 28713 G01009-SR4 11614 4820 7469 10117 12765 15414 18062 20710 28655 5708 2051 3459 4866 6271 7669 9066 10464 14657 10015 3053 5701 8350 10998 13646 16295 18943 26888 G1010-SR4 11614 6488 10000 13511 17023 20534 24046 27557 5708 2938 4804 6664 8518 10371 12224 14078 10015 4721 4232 11744 15255 18767 22278 25790 G01012-SR4 11614 9063 14096 19130 24163 5708 4306 6973 9630 12286 10015 7296 12329 17362 22395 G01014-SR4 11614 13413 19534 25654 5708 6613 9843 13073 10015 11646 17766 23887 G01008-SR3 13598 6048 8126 10203 12281 18513 23707 28901 6605 2523 3631 4735 5839 9143 11884 14625 11445 3669 5746 7824 9901 16434 21327 26521 G01009-SR3 13598 ` 5889 8537 11185 13834 16482 19130 27075 6605 2437 3850 5257 6665 8071 9469 13662 11445 3509 6157 8806 11454 14102 16751 24695 G01010-SR3 13598 4908 8420 11931 15443 18954 22466 25977 6605 1904 3787 5653 7520 9376 11229 13082 11445 2529 6040 9552 13063 16574 20086 23597 G01012-SR3 13598 7483 12516 17550 22583 6605 3289 5964 8634 11291 11445 5104 10137 15170 20203 G01014-SR3 13598 11833 17954 24074 6605 5601 8848 12078 11445 9453 15574 21695 Spring Return G1 Pneumatic Actuator T Spring Return G1 Pneumatic Actuator Torque Chart orque Chart Spring Torque Operating Pressure (psig) Actuator (in-lbs) 40 50 60 70 80 90 100 110 120 150 175 200 Model Start/Min/End Torque Output Start/Min/End (in-lbs) Part No. 3TG200900 3TG201000 3TG201200 3TG201400 3TG201600 3TG301000 3TG301200 3TG301400 3TG301600 3TG302000 Part No. 3TG100804 3TG100904 3TG101004 3TG101204 3TG101404 3TG100803 3TG100903 3TG101003 3TG101203 3TG101403 20 G2009 Start/End 22441 25647 28852 32058 35264 38470 48087 56102 Minimum 11844 13536 15228 16920 18612 20304 25379 29609 G2010 Start/End 21254 25504 29755 34006 38257 42507 46758 51009 Minimum 11217 13461 15704 17948 20191 22434 24678 26921 G2012 Start/End 24371 30464 36556 42649 48742 54835 60927 Minimum 12862 16078 19294 22509 25725 28941 32156 G2014 Start/End 29636 37046 44455 51864 59273 Minimum 15641 19552 23462 27373 31283 G2016 Start/End 39118 48897 58677 Minimum 20646 25807 30968 G3010 Start/End 35888 41015 46142 51269 56396 61523 76903 89721 102538 M inimum 18941 21647 24353 27059 29764 32470 40588 47352 54117 G3012 Start/End 36847 44216 51585 58955 66324 73693 81063 88432 Minimum 19447 23336 27226 31115 35004 38894 42783 46672 G3014 Start/End 35887 44859 53831 62803 71775 80747 89719 98690 Minimum 18941 23676 28411 33146 37881 42616 47351 52087 G3016 Start/End 47430 59288 71145 83003 94860 Minimum 25033 31291 37549 43807 50065 G3020 Start/End 75266 94082 Minimum 39724 49654 Actuators and ControlsG Series 21 Actuators and Controls G01008-SR2 15526 8443 10521 16753 21947 27141 7352 3692 4796 8109 10857 13598 13037 5692 7770 14002 19196 24390 G01009-SR2 15526 6777 9425 12074 14722 17370 25315 7352 2800 4214 5622 7029 8437 12635 13037 4026 6674 3923 11971 14619 22564 G01010-SR2 15526 6660 10171 13683 17194 20706 24217 7352 2736 4611 6477 8348 10202 12055 13037 3909 7420 10932 14443 17955 21466 G01012-SR2 15526 5723 10756 15789 20823 7352 2228 4922 7597 10264 13037 2972 8005 13039 18072 G01014-SR2 15526 10073 16194 22314 7352 4559 7811 11051 13037 7322 13443 19563 G0108-SR1 18470 8599 14831 20025 25219 8749 3364 6703 9463 12223 14776 4516 10748 15942 21136 G0109-SR1 18470 7503 1152 12800 15448 23393 8749 2764 4207 5623 7030 11253 14776 3420 6069 8717 11365 19310 G01010-SR1 18470 8249 11761 15272 18784 22295 8749 3174 5071 6937 8803 10669 14776 4166 7678 11189 14701 18212 G01012-SR1 18470 8834 13868 18901 8749 3492 6190 8865 14776 4752 9785 14818 G01014-SR1 18470 8151 14272 20392 8749 3121 6405 9658 14776 4068 10189 16309 Spring Return G1 Pneumatic Actuator Torque Chart Spring Torque Operating Pressure (psig) Actuator (in-lbs) 40 50 60 70 80 90 100 110 120 150 175 200 Model Start/Min/End Torque Output Start/Min/End (in-lbs) Part No. 3TG100802 3TG100902 3TG101002 3TG101202 3TG101402 3TG100801 3TG100901 3TG101001 3TG101201 3TG101401Torque Ratings - G Series Spring-Return Actuator Spring Return G1 Pneumatic Actuator Torque Chart Spring Torque Operating Pressure (psig) Actuator (in-lbs) 40 50 60 70 80 90 100 110 120 Model Start/Min/End Torque Output Start/Min/End (in-lbs) All published torques are guaranteed minimum values. Part No. 3TG200902 3TG201002 3TG201202 3TG201402 3TG201602 3TG200901 3TG201001 3TG201201 3TG201401 3TG201601 3TG200904 3TG201004 3TG201204 3TG201404 3TG201604 3TG200903 3TG201003 3TG201203 26818 14072 G2009-SR2 12882 5964 22074 8829 26818 13859 18810 22361 26611 G2010-SR2 12882 5848 8110 10369 12628 22074 8616 12866 17117 21368 26818 12159 18252 24344 30437 36530 G2012-SR2 12882 4926 8185 11423 14661 17896 22074 6915 13008 19101 25194 31286 26818 12648 20057 27466 34875 G2014-SR2 12882 5191 9145 13082 17020 22071 7404 14814 22223 29632 26818 14720 24500 34279 G2016-SR2 12882 6308 11506 16703 22074 9477 19256 29036 30997 G2009-SR1 14742 25004 30997 14871 19122 23373 G2010-SR1 14742 5957 8249 10508 25004 8248 12498 16749 30997 21106 27199 33291 G2012-SR1 14742 9303 12541 15779 25004 14482 20575 26668 30997 16819 24228 31637 G2014-SR1 14742 7014 10962 14900 25004 10195 17604 25013 30997 21261 31041 G2016-SR1 14742 9386 14583 25004 14638 24417 20678 10155 13361 16567 19772 G2009-SR4 9903 4185 5900 7603 9307 16917 5998 9204 12410 15616 20678 11058 15308 19559 23810 28061 32311 G2010-SR4 9903 4675 6935 9194 11453 13712 15956 16917 6901 11152 15402 19653 23904 28155 20678 11766 17859 23952 30044 36137 42230 G2012-SR4 9903 5052 8290 11528 14760 17975 21191 16917 7609 13702 19795 25888 31980 38073 20678 10939 18348 25757 33166 40575 G2014-SR4 9903 4610 8550 12488 16407 20318 16917 6782 14191 21600 29009 36419 20678 20420 30200 39979 G2016-SR4 9903 9652 14842 20003 16917 16264 26043 35823 24139 13833 17039 G2009-SR3 11457 5833 7539 19390 8584 11790 24139 12575 16826 21077 25327 29578 G2010-SR3 11457 5150 7426 9685 11944 14203 19390 7326 11577 15828 20078 24329 24139 15126 21219 27311 33404 39497 G2012-SR3 11457 6522 9760 12998 16236 19460 19390 9877 15970 22062 28155 34248 Actuators and Controls 22Torque Ratings G Series 24139 15615 23024 30433 37842 G2014-SR3 11457 6782 10720 14657 18587 19390 10366 17775 25184 32593 24139 17687 27467 37246 G2016-SR3 11457 7883 13081 18273 19390 12438 22218 31997 49017 20655 G3010-SR2 22571 6848 36975 7346 49017 25456 32826 40195 47564 G3012-SR2 22571 9568 13568 17516 21433 36975 12147 19516 26886 34255 49017 21936 30907 39879 48851 57823 G3014-SR2 22571 7591 12527 17349 22117 26885 36975 8626 17598 26570 35542 44514 49017 30278 42135 53993 G3016-SR2 22571 12185 18548 24849 36975 16968 28826 40683 49017 34398 53215 G3020-SR2 22571 14422 24436 36975 21089 39905 54045 G3010-SR1 25307 42224 54045 27024 34394 41763 G3012-SR1 25307 10497 14497 18420 42224 13960 21329 28698 54045 25106 34078 43050 52022 G3014-SR1 25307 9456 14326 19104 23873 42224 12041 21013 29985 38957 54045 24476 36334 48191 G3016-SR1 25307 9107 15535 21837 42224 11412 23269 35127 54045 28597 47413 G3020-SR1 25307 11351 21423 42224 15532 34349 36568 19695 24822 29949 G3010-SR4 17123 7867 10637 13361 28566 10851 15978 21105 36568 20012 27381 34751 42120 49489 56858 G3012-SR4 17123 8038 11996 15913 19830 23746 27663 28566 11168 18537 25906 33276 40676 48014 36568 22258 31239 40201 49173 58145 67117 G3014-SR4 17123 9257 14042 18810 23578 28347 33089 28566 13414 22385 31357 40329 49301 58273 36568 15857 27714 39572 51429 63287 G3016-SR4 17123 5764 12174 18475 24777 31068 28566 7013 18870 30728 42585 54443 42128 20609 25735 G3010-SR3 19573 7746 10528 32379 9833 14960 42128 23167 30537 37906 45275 52645 G3012-SR3 19573 9135 13115 17032 20949 24865 32379 12392 19761 27130 34500 41869 42128 18044 27016 35988 44960 53931 62903 G3014-SR3 19573 6305 11223 16012 20781 25549 30317 32379 7268 15240 25212 34184 43156 52127 42128 23501 35358 47216 59073 G3016-SR3 19573 9315 15678 21980 28282 32379 12725 24582 36440 48297 42128 39479 58295 G3020-SR3 19573 17868 27868 32379 28703 47519
