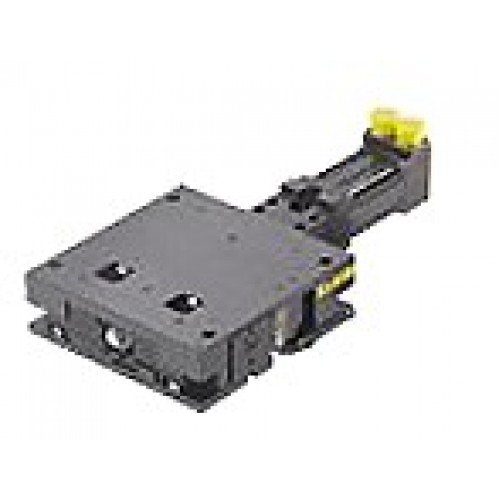

Parker Linear Actuators ZP200

Parker ZP200 Vertical Lift Platform offers precise vertical translation for elevating small or large payloads (up to 167lbs). A unique wedge design converts horizontal motion, generated by a ball-screw drive, into true vertical elevation of the platform. A rugged bearing design provides platform stiffness and stability while the precision ground ball-screw drive assures positional accuracy and worry-free operation.

• True Vertical Lift Platform
• Continuous duty - High dynamic performance
• 25 mm Vertical Travel
• Load Capacity to 167 lbs.
• Positional Repeatablilty to 1 micron
• +/-15 arc.sec. travel straightness throughout range of motion
• Precision Ground Ball-Screw Drive
• Encoder and Travel Limit Sensors
• Multi-axis compatibility with XR and LXR tables
• Laser tested and certified with calibrated lead value
