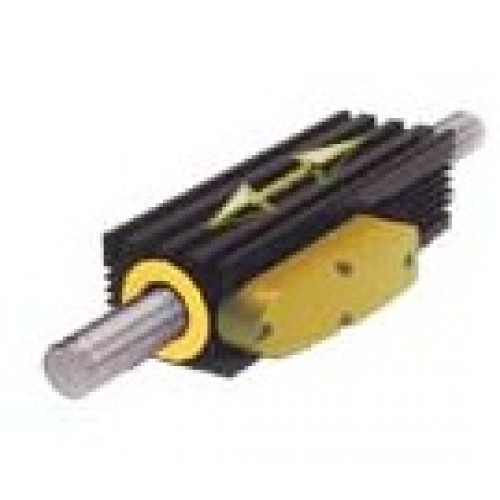

Parker Linear Actuators PRC: POWERROD COMPONENTS
PRC25
- 51~102 N continuous force
- 312~780 N peak force
- Speeds up to 8.7 m/s
- Acceleration up to 256 m/s2
PRC38
- 137~276 N continuous force
- 744~1860 N peak force
- Speeds up to 9.4 m/s
- Acceleration up to 307 m/s2
PRC25 / PRC38
- Integrated position feedback - no additional encoder is required
- Standard 1 Vss sin/cos feedback output 744~1860 N peak force
- Strokes up to 1200 mm
- Protection class IP67
- Plug-and-play with all common servo amplifiers
- Moved forcer
Technical data:
| PRC25.. |
04 |
06 |
08 |
10 |
|
Peak force [N] (1 s) |
312/156 |
468/234 |
624/312 |
780/390 |
|
Standstill force[N] with heat dissipator |
51.2 |
69.5 |
86.4 |
102.4 |
|
Standstill force [N] without heat dissipator |
42.5 |
59.5 |
75.1 |
90.0 |
|
Peak acceleration [m/s2] |
223/111 |
223/111 |
235/117 |
256/128 |
|
Max. speed [m/s] |
8.7/7.3 |
6.5/7.2 |
5.4/7.6 |
4.6/7.0 |
|
Max. stroke [mm] |
1180 |
1129 |
1078 |
1027 |
| PRC38.. |
04 |
06 |
08 |
10 |
|
Peak force [N] (1 s) |
744/372 |
1116/558 |
1488/744 |
1860/930 |
|
Standstill force[N] with heat dissipator |
137.3 |
186.9 |
232.1 |
276.2 |
|
Standstill force [N] without heat dissipator |
120.1 |
168.2 |
212.7 |
255.0 |
|
Peak acceleration[m/s2] |
244/122 |
276/138 |
295/147 |
307/154 |
|
Max. speed[m/s] |
6.2/9.4 |
4.5/7.6 |
3.5/6.2 |
2.8/5.2 |
|
Max. stroke[mm] |
1362 |
1291 |
1291 |
1148 |
Motor phases serial / parallel
