Parker Linear Actuators PRR: POWERROD ACTUATOR WITH ROD GUIDE

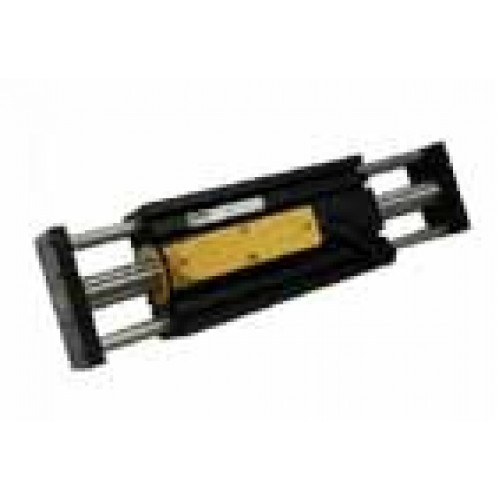

PRR PowerRod Actuator with rod guide
- 61~119 N continuous force
- 344~860 N peak force
- 28~310 mm stroke
- Speeds up to 5.6 m/s
- Acceleration up to 369 m/s2
- Integrated position feedback no additional encoder required
- Standard 1 Vss sin/cos encoder output
- Protection class IP67
- DIN standard mounting
- Accepts a range of industry standard mounting accessories
- Plug-and-play with all common servo controllers
Technical Data:
|
2504 |
2506 |
2508 |
2510 |
|
|
Peak force [N] (1s) |
344/172 |
516/258 |
688/344 |
860/430 |
|
Continuous stall force[N] with heat dissipator |
60.7 |
81.8 |
101.2 |
119.4 |
|
Continuous stall force [N] without heat dissipator |
52.2 |
72.3 |
90.4 |
108.0 |
|
With steel bearing rails and ball bushing |
||||
|
Peak acceleration [m/s2] |
225/113 |
288/144 |
334/167 |
369/185 |
|
Max. speed [m/s] |
5.6/4.1 |
5.3/5.0 |
4.8/5.5 |
4.3/5.8 |
|
With aluminium rails and polymer bushings |
||||
|
Peak acceleration [m/s2] |
276/138 |
354/177 |
413/206 |
458/229 |
|
Max. speed [m/s] |
6.1/4.6 |
5.7/5.5 |
5.1/6.2 |
4.5/6.3 |
|
Max. stroke [mm] |
309 |
|||
Motor phases serial / parallel
