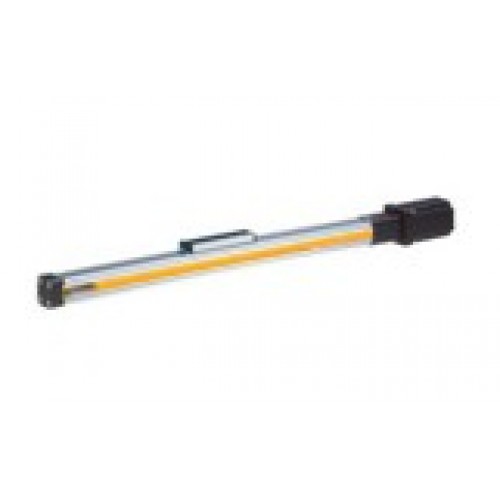

Parker Linear Actuators OSP-E ST: LINEAR ACTUATOR WITH TRAPEZOIDAL SCREW
Linear Actuator with Trapezoidal Screw for intermittent applications.
Advantages:
- Accurate path and position control
- High force output
- Self-locking
- Excellent slow speed characteristics
- Easy installation
- Low maintenance
- Ideal for level regulation, lifting and other applications with intermittent operations
Features:
- Integrated guide- and drive system
- Complete motor and control packages
- Diverse range of accessories and mountings
Standard Version:
- OSP-E25ST, OSP-E32ST, OSP-E50ST
- Standard carrier with own internal guidance
- Dovetail grooves for mounting accessories and the drive itself
- Travel per rotation of threaded spindle:
Type OSP-E25ST : 4 mm
Type OSP-E32ST : 4 mm
Type OSP-E50ST : 6 mm
Options:
- Incremental displacement measuring system SFI-plus
- with parallel keyway
