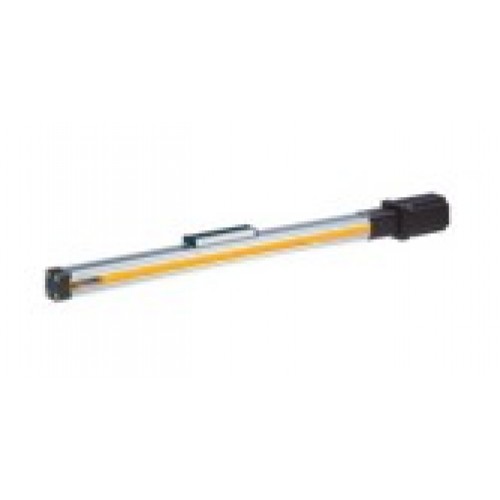

Parker Linear Actuators OSP-E SB: LINEAR ACTUATOR WITH BALL SCREW

Linear actuator with ball screw

Advantages:

• Accurate path and position control
• High force output
• Easy installation
• Excellent slow speed characteristics
• Ideal for precise traverse operations
  (e.g. machine feeds) and lifting applications

Features:

• Integrated drive and guidance system
• Complete motor and control packages
• Diverse range of accessories and mountings
• Optimal screw pitches (5, 10, 25 mm)

Standard Version:

• OSP-E25SB, OSP-E32SB, OSP-E50SB
• Standard carrier with own internal guidance
• Dovetail grooves for mounting accessories and the drive itself
• Travel per rotation of threaded spindle:
  Type OSP-E25 : 5 mm
  Type OSP-E32 : 5, 10 mm
  Type OSP-E50 : 5, 10, 25 mm

Options:

• Tandem version
• Cleanroom version, certified to DIN EN ISO 14644-1
• Incremental displacement measuring system SFI-plus
