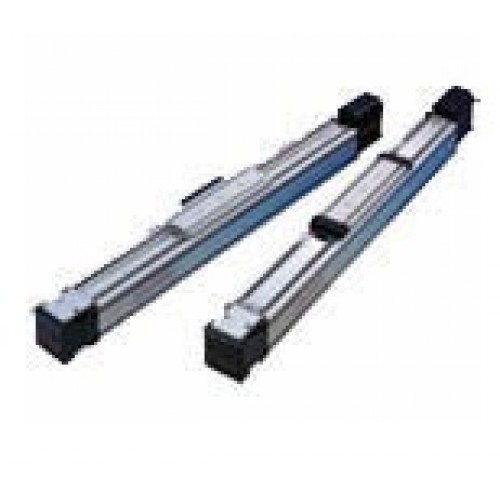

Parker Linear Actuators HLE LINEAR ACTUATORS

• Up to 20 m for timing belt drive
• High speeds in practical applications of up to 5 m/s
• High load-bearing capacity up to 1000 kg
• Nominal drive torque up to 108 Nm
• Nominal thrust force up to 2700 N
• Repeatability up to ± 0.05 mm
• High degree of mechanical efficiency
• Independent multiple carriages can be used on one linear actuator for rack-and-pinion drive

Technical Data

	HLE
	100	150
Cross-section [mm]	100	150
Drive type	Belt-pulley
Max travel [m]	6.3	8.2
Max velocity [m/s]	5
Rated acceleration [g's]	1
Repeatability [mm] up to a stroke of 3000 mm	±0.05
Repeatability [mm] from a stroke of 3000 mm	±0.1
Cleanroom option	Yes
Stainless option	Yes
