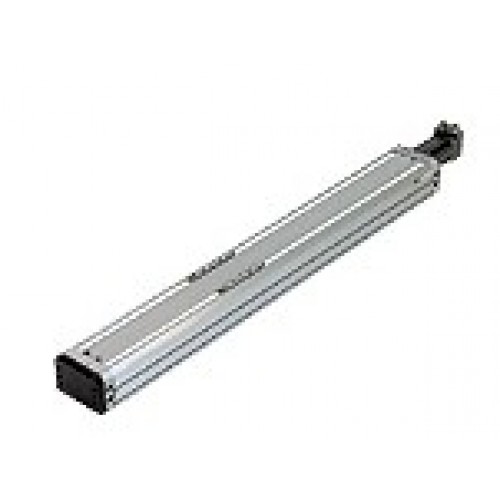

Parker Linear Actuators HD SERIES LINEAR POSITIONERS

Motor Adapter
Dimensions
Assembly
Part Number Example MotorsM N P S T
A021-HD125 or
M4 x 0.7 60.0 50.0 8.0 7.5 Allen Bradley LD-2003
B021-HD125
A031-HD125  or  Parker SMB60/HDY55
M5 x 0.8 63.0 40.0 9.0 7.5
B031-HD125  Allen Bradley MPL1510/1520/1530
A041-HD125 or  Kollmorgen AKM2X-AN
M4 x 0.7 63.0 40.0 9.0 7.5
B041-HD125 Indramat MKD025
A061-HD125 or
M5 x 0.8 70.0 50.0 8.0 10.0 Yaskawa SGMP-01, SGMPH-01-XXXX
B061-HD125
Yaskawa SGMAH-02XXF4X,
A062-HD125 r
M5 x 0.8 70.0 50.0 14.0 10.0 SGMAH-04XXF4X, SGM-02, SGM-04
B062-HD125
Allen Bradley Y-2006, Y-2012
Parker J070/NO70/HDY70
A071-HD125 or
Allen Bradley MPL210/220/230
M5 x 0.8 75.0 60.0 11.0 ¨
B071-HD125
Kollmorgen B102/BH-122
A081-HD125 or  Yaskawa SGMPH-02XXX,
M6 x 1.0 90.0 70.0 14.0 10.0
B081-HD125 SGMPH-04XXX, SGMP-02, SGMP-04
A101-HD125 or
M6 x 1.0 95.0 50.0 14.0 10.0 Indramat MKD041
B101-HD125
A111-HD125 or
M6 x 1.0 100.0 80.0 14.0 10.0 Parker JO92X/NO92X
B111-HD125
A121-HD125 or
M6 x 1.0 100.0 80.0 16.0 8.0* Kollmorgen AKM4X-AN Mounting Code
B121-HD125
Parker ES23X
A231-HD125 or
M5 x 0.8 66.68 38.1 6.35 10.0 Allen Bradley N-2302, N-2304
B231-HD125
Animatics SM2310D, SM2320D
A232-HD125 or
M5 x 0.8 66.68 38.1 9.53 10.0 Parker SM23X , BE23X
B232-HD125
A233-HD125 or  Yaskawa SGMAH-0XXN2XX,
M4 x 0.7 66.68 38.1 12.7 10.0
B233-HD125 SGMAH-04XXN2XX NEMA 23 Face
A341-HD125 or
M5 x 0.8 98.43 73.03 6.35 15.0 Parker HV/LV34
B341-HD125
A342-HD125 or
M5 x 0.8 98.43 73.03 12.7 15.0 Parker BE34
B342-HD125
