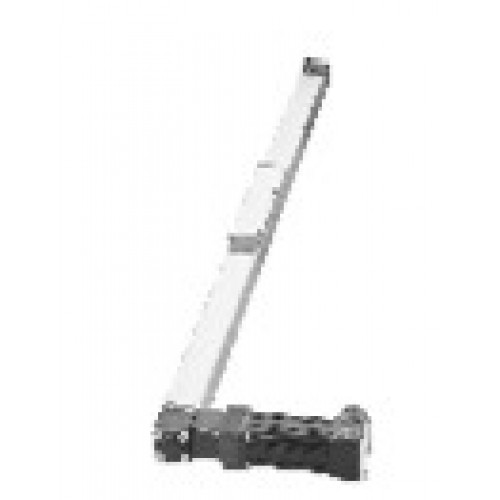

Parker Linear Actuators ER SERIES - ELECTRIC RODLESS ACTUATORS

The ER Series from Parker Hannifin''s Automation Actuator Division was designed to rovide a solution to a variety of linear motion applications by offering a low cost, modular design electric rodless actuator. The load-bearing carriage is supported either by precision roller bearing wheels or an internally mounted square rail. Combined with a Parker Hannifin stepper or servo motor system, the ER Series offers full programmability and high resolution and repeatability.
Features:

·  Compact design envelope

·  Multiple drive transmissions

·  Multiple bearing styles

·  High speed capabilities

·  Multi-axis connectivity

·  No need for external load guides

·  Three profile sizes (32 mm, 50 mm, 80 mm)

·  Belt-driven, Acme screw-driven or ball screw-driven

·  Roller bearing carriage assembly

·  Square rail bearing option for greater load carrying capability (screw drive only)

·  Ready to mount to stepper motors, brushless servo motors, DC brush motors and reduction systems

Basic Dimensions
KV
Model A AM BG BH DD DD1 E F KK KW TG VE WHBMM
A/F
14.0 22.1 30.0 16.0 9.0 46.5 16.0 10.0. 4.8 18.0 32.5 13.0. 25.9
ET0
M6x1 M6x1 M10x1.25
(0.55) (0.87) (1.18) (0.63) (0.35) (1.83) (0.63) (0.39) (0.19) (0.71) (1.28) (0.51) (1.02)
16.0 32.0 40.0 16.0 12.7 63.5 24.0 17.0 6.4 25.0 46.5 16.0 37.0
ET050
M8.x1.25
M8x1.25 M16x1.5
(0.63) (1.26) (1.57) (0.63) (0.50) (2.50) (0.94) (0.67) (0.25) (0.98) (1.83) (0.63) (1.46)
21.0 40.0 50.0 16.0 17.5 95.2 30.0 22.0 9.9 35.0 72.0 20.0 46.5
ET080
M10x1.5 M10x1.5 M20x1.5
(0.83) (1.57) (1.97) (0.63) (0.69) (3.75) (1.18) (0.87) (0.39) (1.38) (2.83) (0.79) (1.83)
27.5 53.8 65.0 16.0 24.0 114.3 50.0 27.0 13.0 50.0 89.0 20.0 51.1
ET100
M10x1.5 M12x1.75 M27x2.0
(1.08) (2.12) (2.56) (0.63) (0.94) (4.50) (1.97) (1.06) (0.51) (1.97) (3.50) (0.79) (2.01)
37.0 71.5 90.0 11.0 24.0 140.0 64.0 41.0 13.0 70.0 110.0 25.4 73
ET15
M12x1.5 M16x2.0 M36x2.0
(1.46) (2.81) (3.54) (0.43) (0.94) (5.51) (2.52) (1.61) (0.51) (2.75) (4.33) (1.00) (2.87)
