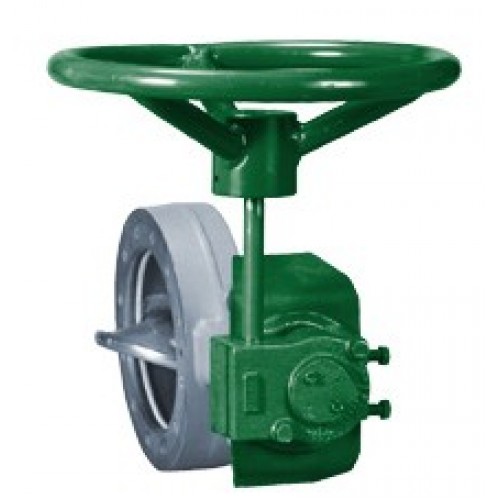

Fisher Manual Actuators Fisher® M Series handwheel gear actuators

Fisher® M Series handwheel gear actuators are totally enclosed, weatherproof, worm gear actuators for reliable manual operation with Fisher A11, A31A and A41 High Performance Butterfly Valves. The M actuator consists of a body housing, cover, worm gear, input shaft, and handwheel. The housing is grease packed.

• Long Service Life—Rugged construction provides stability and corrosion resistance. The unit is totally enclosed for weatherproof operation.
• Accurate Valve Disc Positioning—Two adjustable stops are located in the housing for correct adjustment of disc position. The actuator is inherently self-locking, unless subjected to high vibration.
• Overtravel Capability—Provides for five degrees of overtravel in both directions for precise positioning of the valve disc.
