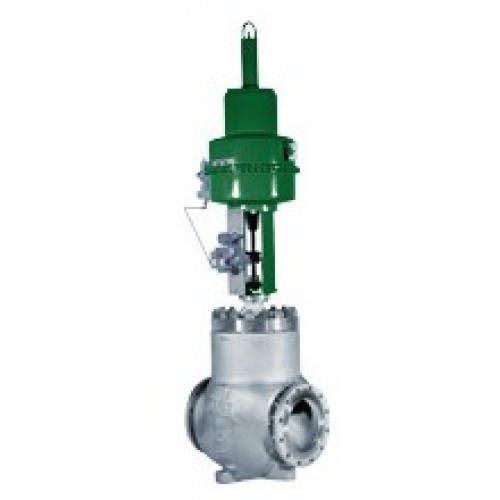

Fisher Pneumatic Actuators Fisher 3025 actuator

Fisher® 3025 Size P460-200, P462 and P900 spring opposed diaphragm actuators position the valve plug in the valve body in response to varying controller or valve positioner pneumatic output signals applied to the actuator diaphragm. They can be specified as either direct, e.g. air-to-close, or reverse acting e.g. air-to-open. These actuators are designed to provide dependable on-off or throttling operation of automatic control valves.

•  Long Travel Capability–Suitable for valves with valve plug travels of up to 200 mm (8 inches).
• Application Versatility–Yoke boss mountings, travel stops, and manual operators are available for nearly any control valve requiring longer valve plug travels.
• Positive Connections–Split block stem connection provides for a solid transfer of motion while allowing easy mounting, and it includes no linkages to create lost motion and inaccurate valve positioning.
• Reversible Construction–Actuator action can be easily changed on site without need of additional parts.
• Long Service Life–Rugged steel construction provides stability and corrosion protection
