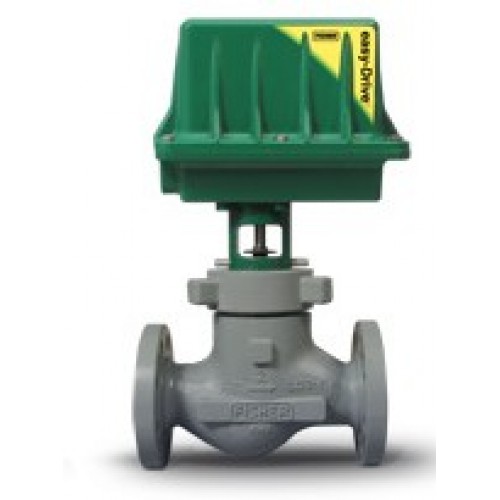

Fisher Electric Actuators Baumann NV electric control valve series
The Baumann NV electric control valve series is specifically designed for Baumann sliding-stem control valves. It is used for temperature and humidity control for HVAC (hot and chilled water, steam, glycol, etc.), semiconductor manufacturing (clean rooms, make-up air handlers, recirculation air handlers, humidification, chillers, jackets, and glycol systems) and for many more industrial environments (textiles, food and beverage, and tire manufacturing).
Actuator
- Multi-Function Technology (MFT) provides standard auto calibration and signal select ability at the factory or in the field
- Valve failure modes available - close, open, and last position
- Choice of power supply: 24VAC or 24VDC
- Stem position feedback transmitter available
Valve
- High quality S21800 SST and S31600 SST internal valve trim parts are standard; S41600 trim and PTFE seating options are available
- Dual stem and plug guiding provides increased stability during plug travel
- Available equal percentage and linear characterized trims to match process loop dynamics
