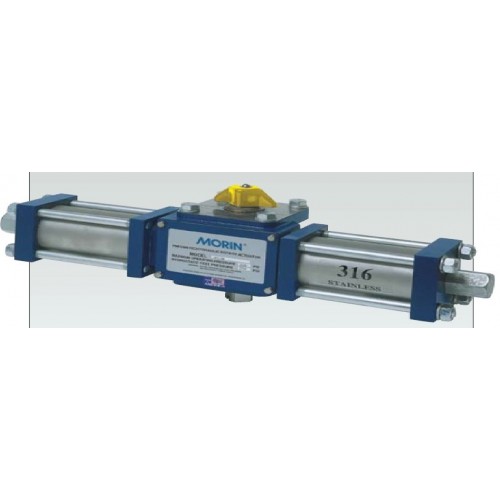

Keystone Hydraulic Actuators Morin Figure B-HP actuator

1,500 psig operating pressure rating Direct gas/hydraulic actuators Ductile iron/stainless steel quarter-turn Double acting and spring return models

Features & Benefits:

• High pressure construction eliminates undesirable regulators and relief valves for supply pressures up to 1,500 psig.
• Hydraulic dampening provides smooth “open-close” operation to prevent detrimental valve slamming.
• Ductile iron housing provides long product life with durable, cost effective operation.
• Cylinders of 316 stainless steel provide unrivaled corrosion resistance.
• Output shaft made of high strength alloy steel transmits torque without
• Sintered bronze bushings or sealed needle bearings on output shaft eliminate side loading of valve stem to maximize stem packing performance.
• Chrome-plated steel piston rod provides strength and corrosion resistance for enduring high-cycle applications.
• Sintered bronze piston rod bushings provide low-friction support and precise alignment of the piston rod to increase efficiency, reduce maintenance and extend actuator life.
• Heat-treated stainless steel thrust pin and rollers transfer piston force to
  17-4PH stainless steel yoke by rolling to reduce friction, for longer life and more efficient torque transmission.
• PTFE guide bands ensure low-friction piston guidance during operation to protect cylinder walls from potential scoring and extend seal performance with a continuous cylinder wiping action.
• Bi-directional travel stops provide accurate valve rotation adjustment.
• ISO 5211 mounting promotes easier valve adaptation by utilizing internationally recognized mounting patterns.
• Drive slot on output shaft enables accessory-driven components to maintain a compact, low profile assembly.
• Tectyl-coated springs can be disarmed without special tools to safely and easily disassemble the actuator in the field, reducing down time and providing a “man-safe” spring.
• Easily removable housing cover provides effortless access for internal inspection.
• Dry piston seal consists of a one piece graphite filled TFE ring with an O-ring expander. Seal is self lubricating and performs well in direct gas and hydraulic service.
• Morin Figure B-HP actuator
  Dimensions
  Dimensional data (inches)
  1 2
  NPT NPT ISO
  Double actingABC1C2D1D2EFGJKLMQportsportsflange
  HP15U-2-1DA19.8111.003.50-5.50-3.061.75-2.164.316.812.251.253/81/8F12
  HP15U-2-2DA22.0011.003.50-5.50-3.06--2.164.316.812.25-3/8-F12
  HP15U-3-1DA25.8717.065.50-6.50-3.061.75-2.164.316.812.251.251/21/8F12
  HP25U-3-1DA34.8219.445.50-8.13-5.632.75-4.388.1311.823.191.751/23/8F16
  HP25U-4-1DA37.8522.477.00-8.88-5.632.75-4.388.1311.823.191.751/23/8F16
  HP30U-4-1DA44.2224.507.00-13.62-7.633.50-5.4413.6214.816.881.751/23/8F30
  HP30U-6-1DA45.8826.139.00-14.62-7.633.500.445.4413.6214.816.881.751/23/8F30
  HP30U-8-1DA46.3826.6310.63-15.43-7.633.501.255.4413.6214.816.881.751/23/8F30
  Spring return
  HP15U-2-1-023S24.5011.003.504.815.506.182.79-0.252.164.316.812.251.253/8-F12
  HP15U-2-1-046S24.5011.003.504.815.506.182.79-0.252.164.316.812.251.253/8-F12
  HP15U-2-1-072S25.7511.003.505.815.506.682.70-0.752.164.316.812.251.253/8-F12
  HP15U-2-1-100S25.7511.003.507.125.507.342.70-1.322.164.316.812.251.253/8-F12
  HP15U-3-1-100S31.7517.065.507.126.507.342.70-1.322.164.316.812.251.251/2-F12
  HP25U-3-1-210S45.9419.445.5011.508.1311.884.66-2.004.388.1311.823.192.121/2-F16
  HP25U-3-1-420S45.9419.445.5011.508.1311.884.66-2.004.388.1311.823.192.121/2-F16
  HP25U-4-1-210S48.9722.477.0011.508.8811.884.66-2.004.388.1311.823.192.121/2-F16
  HP25U-4-1-420S48.9722.477.0011.508.8811.884.66-2.004.388.1311.823.192.121/2-F16
  HP30U-4-1-370S56.7524.507.0013.5013.6216.756.92-2.695.449.5014.816.881.751/2-F30
  HP30U-4-1-740S56.7524.507.0013.5013.6216.756.92-2.695.449.5014.816.881.751/2-F30
  HP30U-6-1-575S60.6326.139.0017.0014.6218.506.39-4.505.449.5014.816.882.501/2-F30
  HP30U-6-1-740S58.1326.139.0013.5014.6216.756.92-2.695.449.5014.816.881.751/2-F30
  HP30U-6-1-1150S60.6326.139.0017.0014.6218.506.39-4.505.449.5014.816.882.501/2-F30
  HP30U-8-1-740S58.6326.6310.6313.5015.4316.756.92-2.695.449.5014.816.881.751/2-F30
  HP30U-8-1-1150S61.1326.6310.6317.0015.4318.506.39-4.505.449.5014.816.882.501/2-F30
  Mechanical Data
  ActuatorCylinderVolumeMaximumMaximum
  modelboreStrokecubic inWeightoperatinghydrostatic
  double acting(inch)(inch)95°,Stroke(lbs.)pressure (psi)pressure (psi
  HP15U-2-1DA2.13123015002250
  HP15U-2-2DA2.13124315002250
  HP15U-3-1DA3.2325487001500
  HP25U-3-1DA3.254615515002250
  HP25U-4-1DA4.257116011002250
  HP30U-4-1DA4.2610136515002250
  HP30U-6-1DA6.2618441010002250
  HP30U-8-1DA8.263214606002250
  Spring return
  HP15U-2-1-023S2.13123515002250
  HP15U-2-1-046S2.13124515002250
  HP15U-2-1-072S2.13125515002250
  HP15U-2-1-100S2.13127515002250
  HP15U-3-1-100S3.232519010001500
  HP25U-3-1-210S3.254625015002250
  HP25U-3-1-420S3.254626015002250
  HP25U-4-1-210S4.257126014002250
  HP25U-4-1-420S4.257126514002250
  HP30U-4-1-370S4.2610144015002250
  HP30U-4-1-740S4.2610160015002250
  HP30U-6-1-575S6.26184101015002250
  HP30U-6-1-740S6.2618491015002250
  HP30U-6-1-1150S6.26184111515002250
  HP30U-8-1-740S8.2632110759002250
  HP30U-8-1-1150S8.2632111609002250
