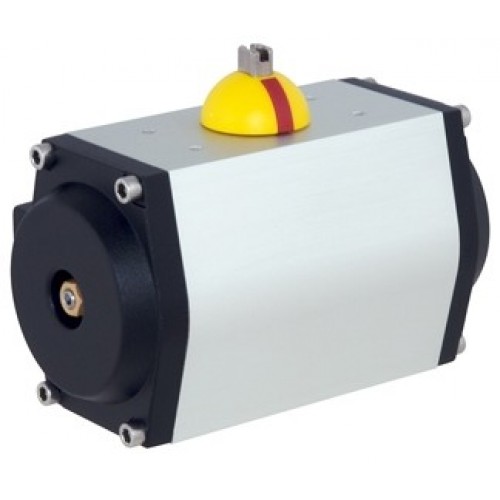

Rotork Fluid Power Actuators GT Range single- and double-acting pneumatic piston actuators

GT Range single- and double-acting pneumatic piston actuators.

Design

• Single- and double-acting pneumatic piston actuators (rack and pinion)

Action

• Standard 90°, 120°, 180° and 240° upon application
• Customised angles available as well as three position versions

Stroke adjustment

• 90° Position from -5° to +5°
• Single and double end stop options

Torques

• 3 to 15,300 Nm

Air pressure

• 2 to 10 bar

Supply

• Filtered air PNEUROP/ISO class 4, other fluids on request
