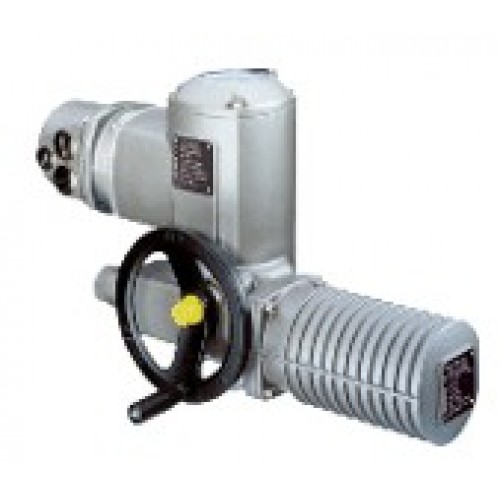

Auma Part-turn actuators SGR 05.1 - SGR 12.1

Part-turn actuators SGR .1 are rated for intermittent duty S4 - 25%. Special versions are also available for S4 - 50 % and
S5 - 25 %.

The actuators can be combined with different  controls from the simple OPEN-CLOSE controls to the micro-controlled version with logging of operating data or fieldbus interface.

Design features:

• Torque range from 100 Nm to 1,200 Nm
• Modulating torque range from 100 Nm to 400 Nm
• Max. number of starts 600 c/h
• Swing angles from 80° to 110°
• Operating times for 90 ° from 16 s to 50 s
• Limit and torque seating
• 3-ph AC motors
• Handwheel for manual operation
• Mechanical position indicator

Ambient conditions:

• High enclosure protection
• High quality corrosion protection
• Wide ambient temperature ranges

Options:

• Deviating swing angle
• Intermediate position switches
• Switch in tandem version
• Remote position transmitter
• Magnetic limit and torque transmitter
• Mechanical position indicator

Interfaces:

• Electrical connections via AUMA plug/ socket connector (optionally terminals)
• Cable glands in different versions
• Output drive types according to ISO standard
