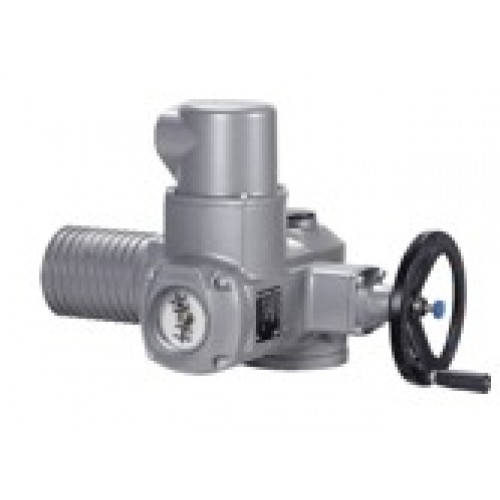

Auma Multi-turn actuators SAR 07.2 - SAR 16.2 Modulating

The modulating actuators of the SAR range are rated for intermittent duty S4 - 25 %. Special versions for S4 - 50 % and S5 - 25 % are also available.

Actuators of type range SAR 07.2 – SAR 16.2 can be combined with various controls: From simple OPEN-CLOSE control to the micro-controlled version with logging of operating data or fieldbus interface

Design features:

• Torque range from 15 Nm to 4,000 Nm
• Modulating torque range from 15 Nm to 1,600 Nm
• Max. number of starts 1,200 c/h
• Output speeds from 4 to 45 rpm
• Limit and torque sensing
• Available with 3-ph AC, 1-ph AC motors
• Handwheel for manual operation

Ambient conditions:

• High enclosure protection
• High quality corrosion protection
• Wide ambient temperature ranges

Options:

• Switches in tandem version
• Remote position transmitter
• Magnetic limit and torque transmitter
• Mechanical position indicator

Interfaces:

• Electrical connection via AUMA plug/socket connector (optionally terminals)
• Cable entries in different versions
• Output drive types according to DIN and ISO standards
