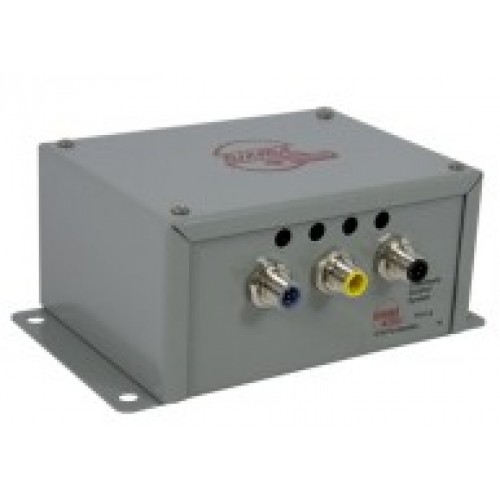

Bettis Position Control System

The PCS system accepts a 0-10 VDC or 4-20 mA analog command signal.  This signal is used by the PCS to move the actuator's rod or rotational shaft to move to and hold a specific position.  The PCS is designed to control any pneumatic Bimba position feedback cylinder, including PFCN, PFCNL, PFC, PFCL, and PTF series actuators.

• Operating Pressure:  70 to 80 PSI
• Reverse polarity and overvoltage protected
• Flow rated models:  0.02Cv, 0.04Cv, 0.08Cv, 0.10Cv, 0.11Cv, 0.25Cv
• Options:  No enclosure, quick connect
• Requires 24V DC Power
• Generates 10V DC to energize resistive probe
