Honeywell Valve Actuators VC2010ZZ00/E, VC2010ZZ00/U, VC2011ZZ00/U, VC2114ZZ11/U, VC2114ZZ31/U, VC2710ZZ03/U, VC2714ZZ11/U, VC4010ZZ00/U, VC4011ZZ00/E, VC4011ZZ00/U

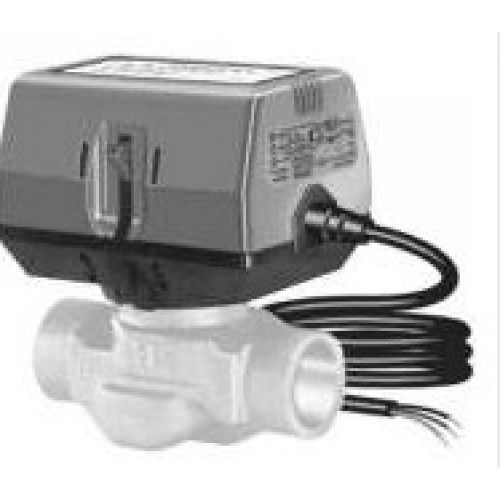

VC Series Two-position Actuators
Control central heating and/or cooling systems, fan coil systems, radiators and convectors. Depending on the model selected, it can be controlled by either a low or line voltage SPST or SPDT controller such as a room thermostat.
VC2010ZZ00/E
ACTUATOR ONLY (EGG CRATE)
VC2010ZZ00/U
VC ACTUATOR 24/50 3WM
VC2011ZZ00/U
VC2011ZZ00/U On/Off; SPDT 24 Vac Valve Actuator
VC2114ZZ11/U
2-Pos. low volt actuator-VC Series valve
Overview
Control central heating and/or cooling systems, fan coil systems, radiators and convectors. Depending on the model selected, it can be controlled by either a low or line voltage SPST or SPDT controller such as a room thermostat.
Features
- Use with two-way or three-way valves.
- Minimal actuator power consumption.
- Quick-connect or one meter cable electrical connections available.
- Quick and easy replacement of moving parts.
- Actuator head installation does not require draining the system.
- On/Off models with six second nominal timing
- Use two-position actuators with 1000 Series 2 way and 6000 Series 3-way VC valve bodies only.
- All VC Series actuator-valve combinations provide 60 psi close-off.
